My Collection: Industria Arc 80
| Manufacturer | Industria |
| Catalogue Number (model) | Arc 80 2685.22010ASR100CGN |
| Wattage | 100W |
| Lamp-Type | SON-T |
| Gear | Original |
| Ballast | Parmar HSP10223221 |
| Ignitor | Parmar PAE400255 |
| Capacitor | ItalFarad 12μF |
| Photocell | Zodion SS6 |
| IP Rating (when new) | IP66 |
| Date Of Manufacture | 06/05/2004 |
| Date On Photocell | ~~/07/2018 |
| Date on Photocell Socket | ~~/12/2003 |
| Date on Ignitor | 28/11/2003? |
| Date on Ballast | 31/02/2004 |
| Date on Capacitor | ~~/03/2003 |
| Date Acquired | 04/12/2024 |
| Restoration Status | Cleaned |
| Collection Number | #123 |

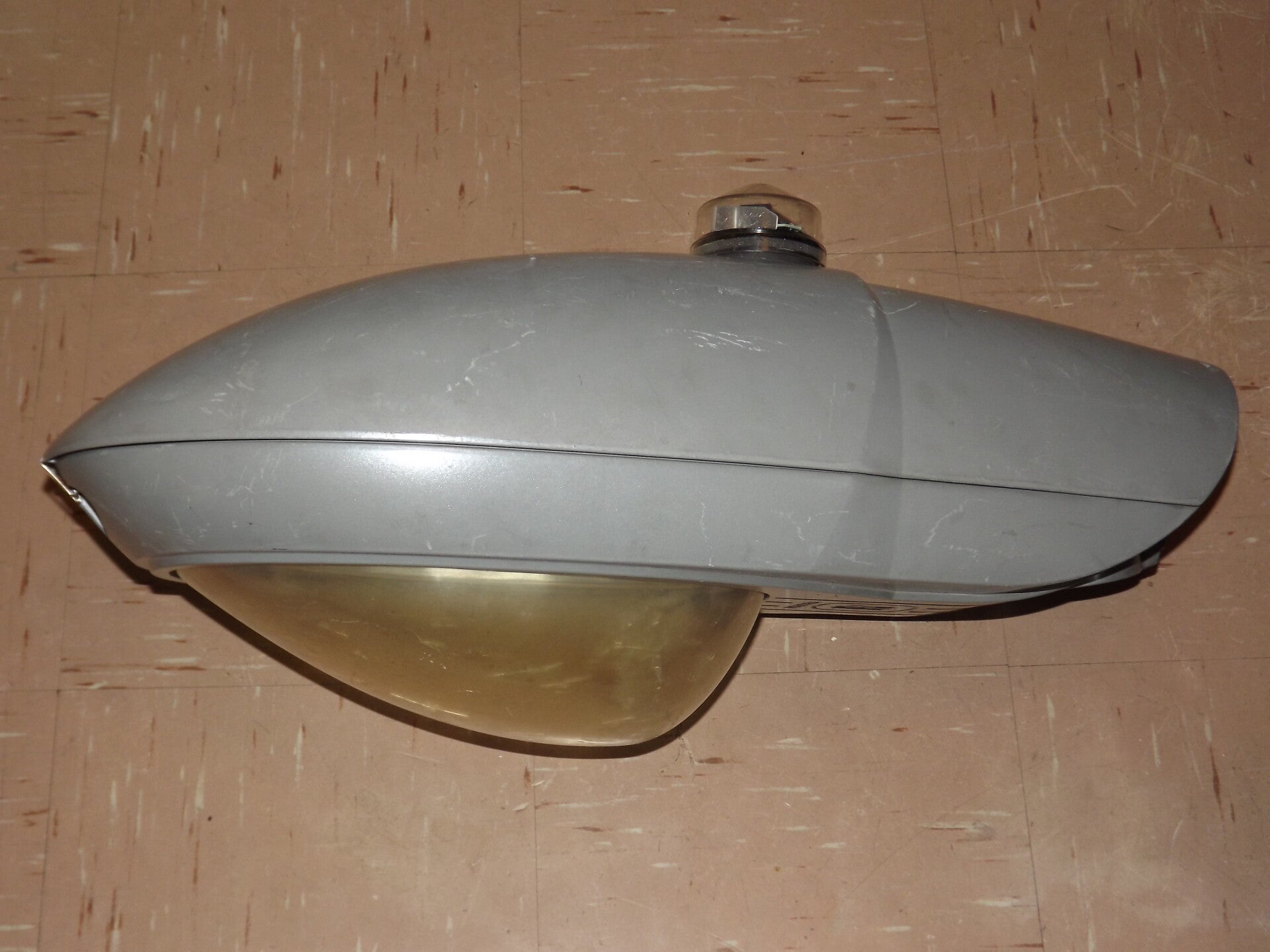

This lantern is for 100W tubular high-pressure sodium lamps, and features a deep polycarbonate bowl. This bowl is adhered to the reflector to produce a sealed unit, rivalling Urbis' ZX2/3 lanterns which ruled the roads in the UK alongside the Arc 80/90. This lantern is just a few months older than me, making it 21 years old in 2025.

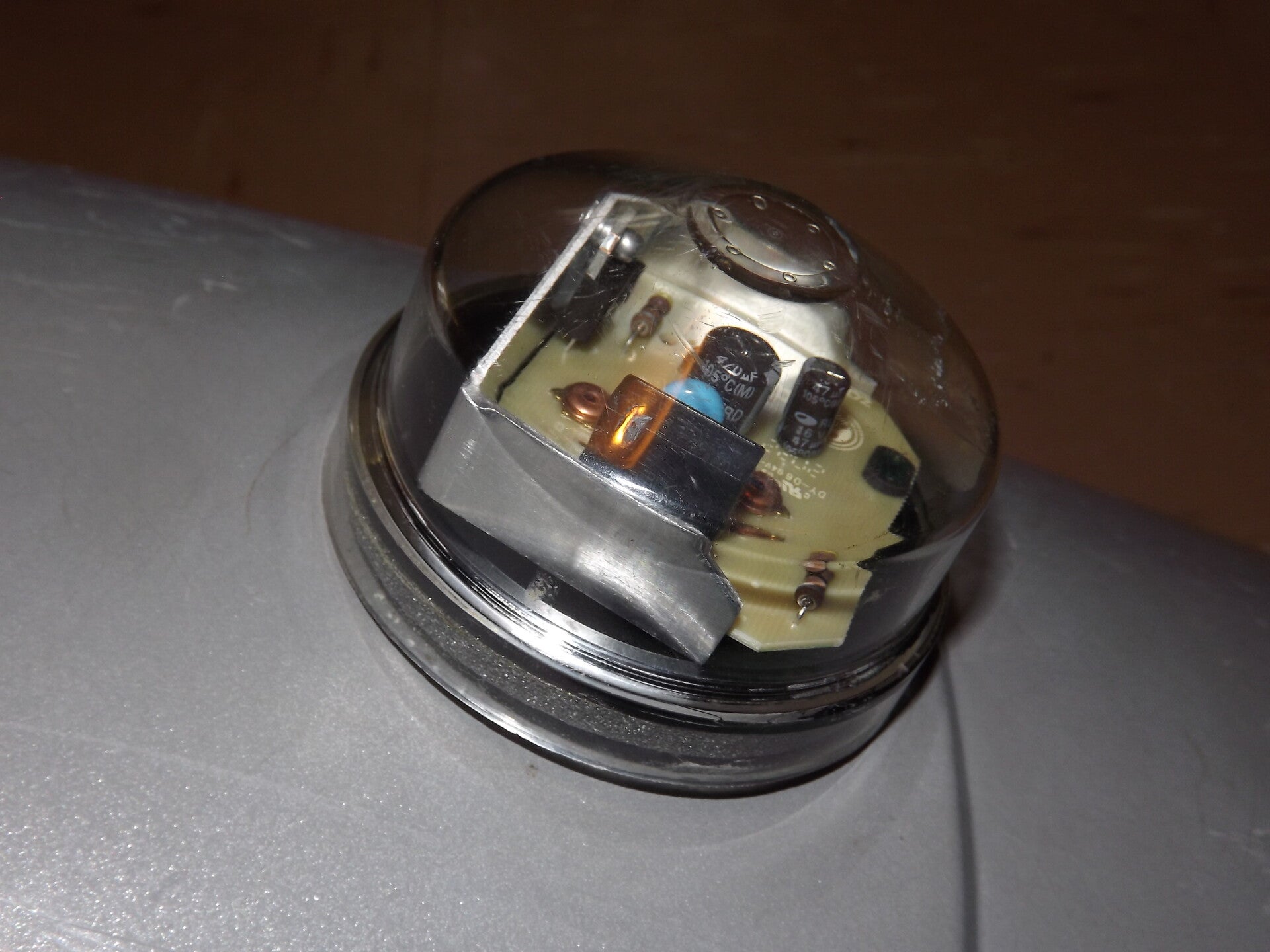

As the Zodion SS6 Cell is quite a recent addition, having replaced an older cell at some point past 07/2018.

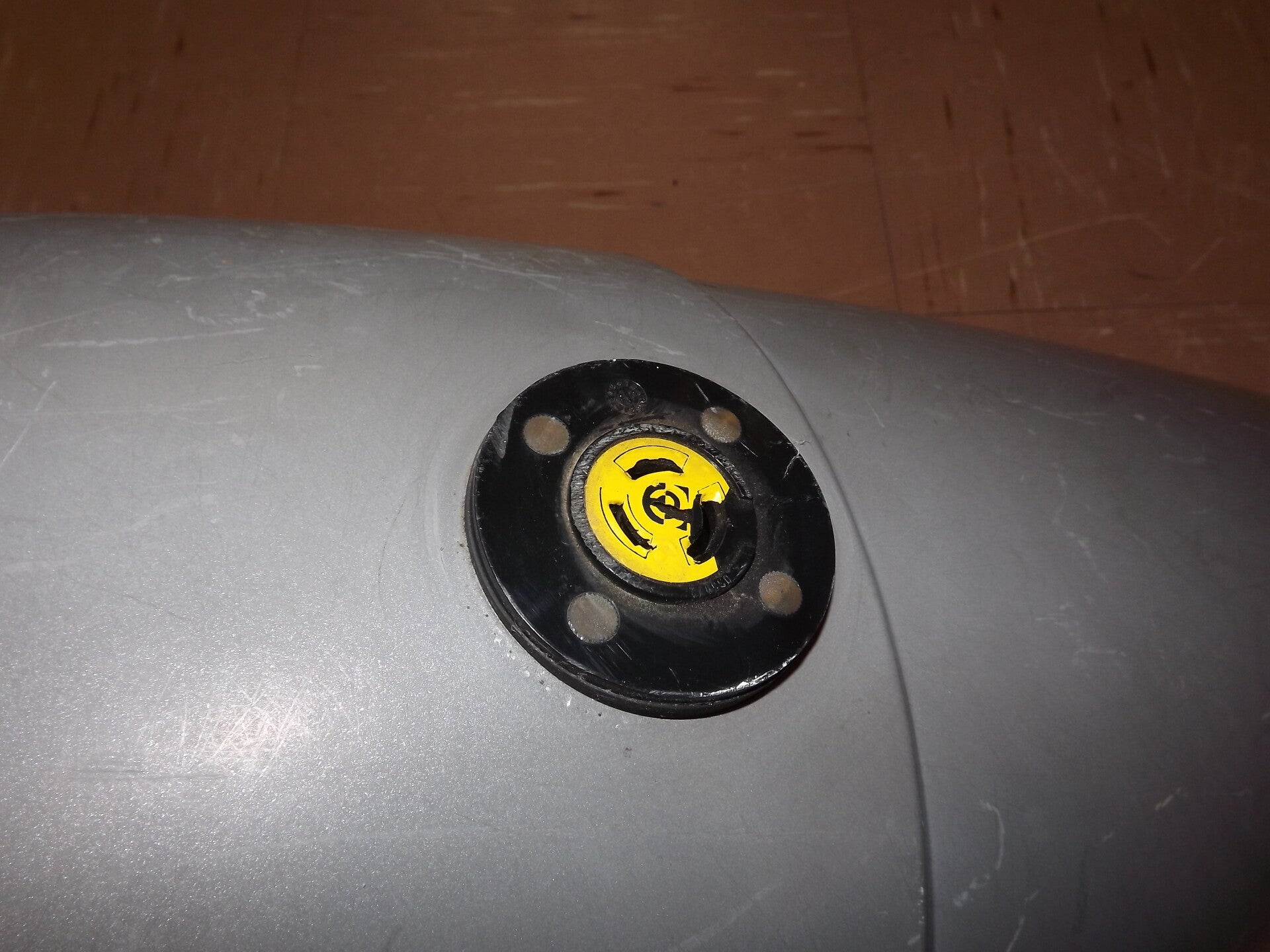

The NEMA socket dates to 12/2003.

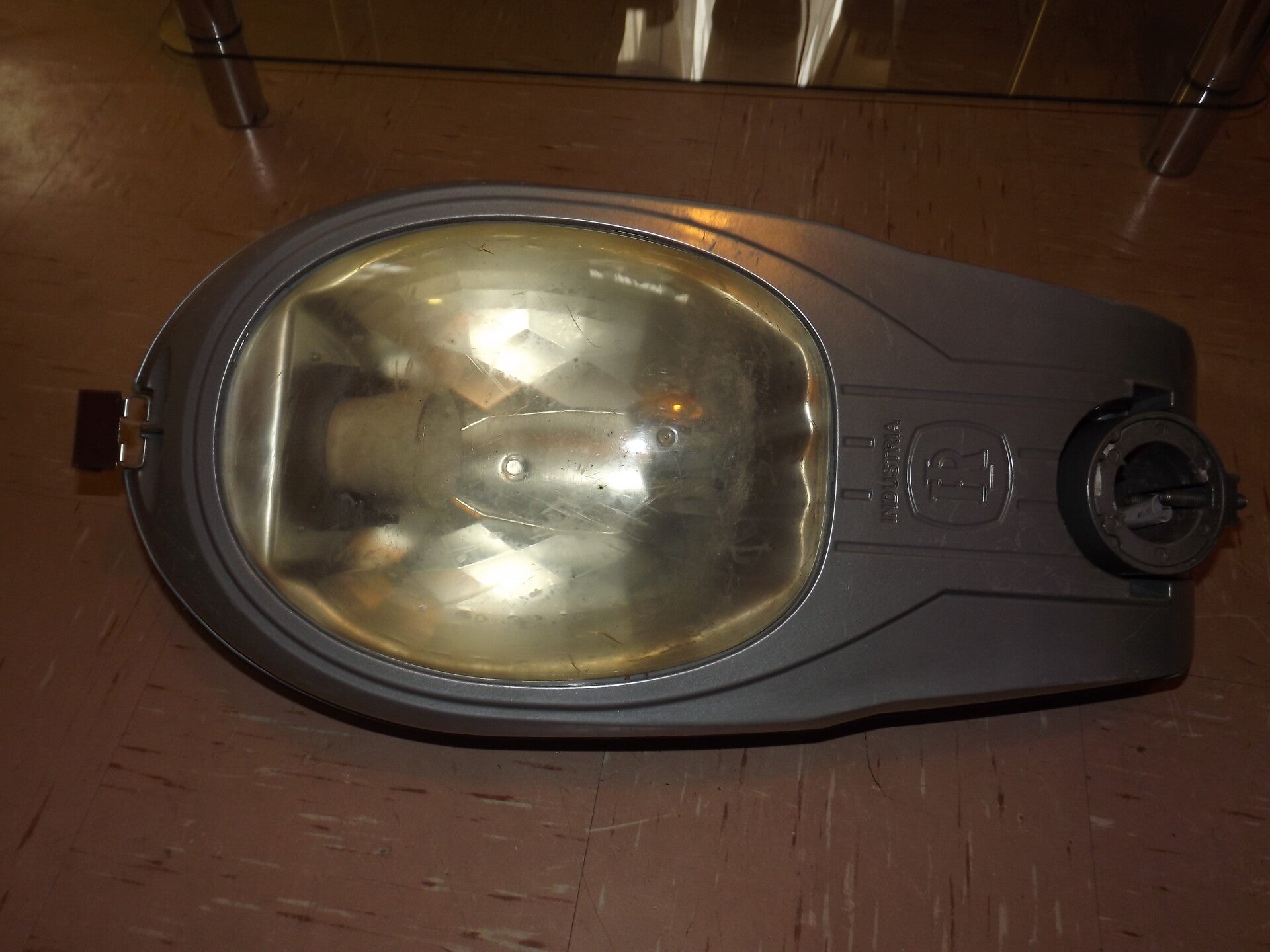

The underside of the lantern is embossed with Industria's logo. We can also see from this angle that the lantern was post-top mounted when in service.

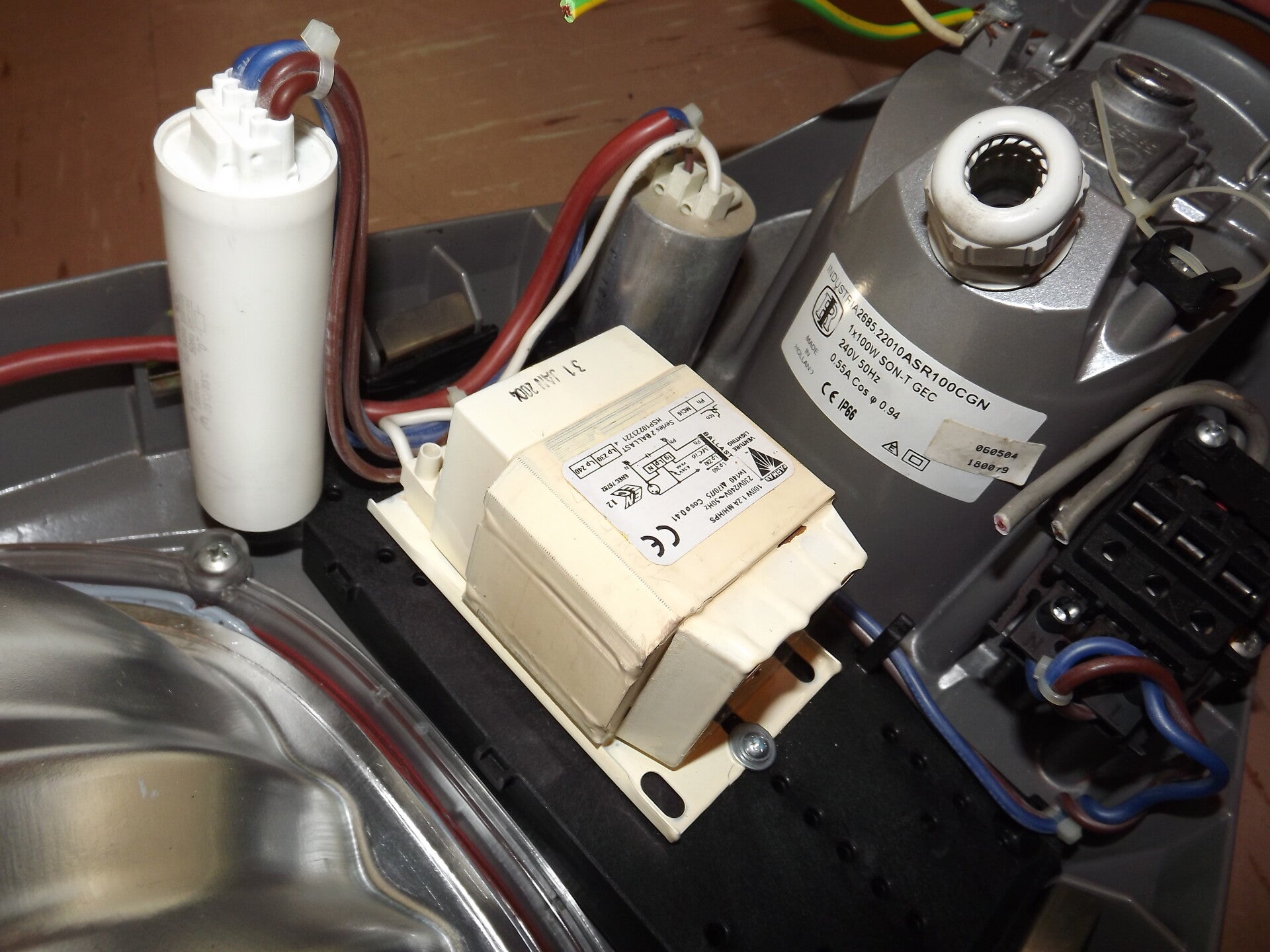

The gear is situated under the canopy towards the rear of the lantern. The ballast possesses an exact date of production: the 31st of January 2004.

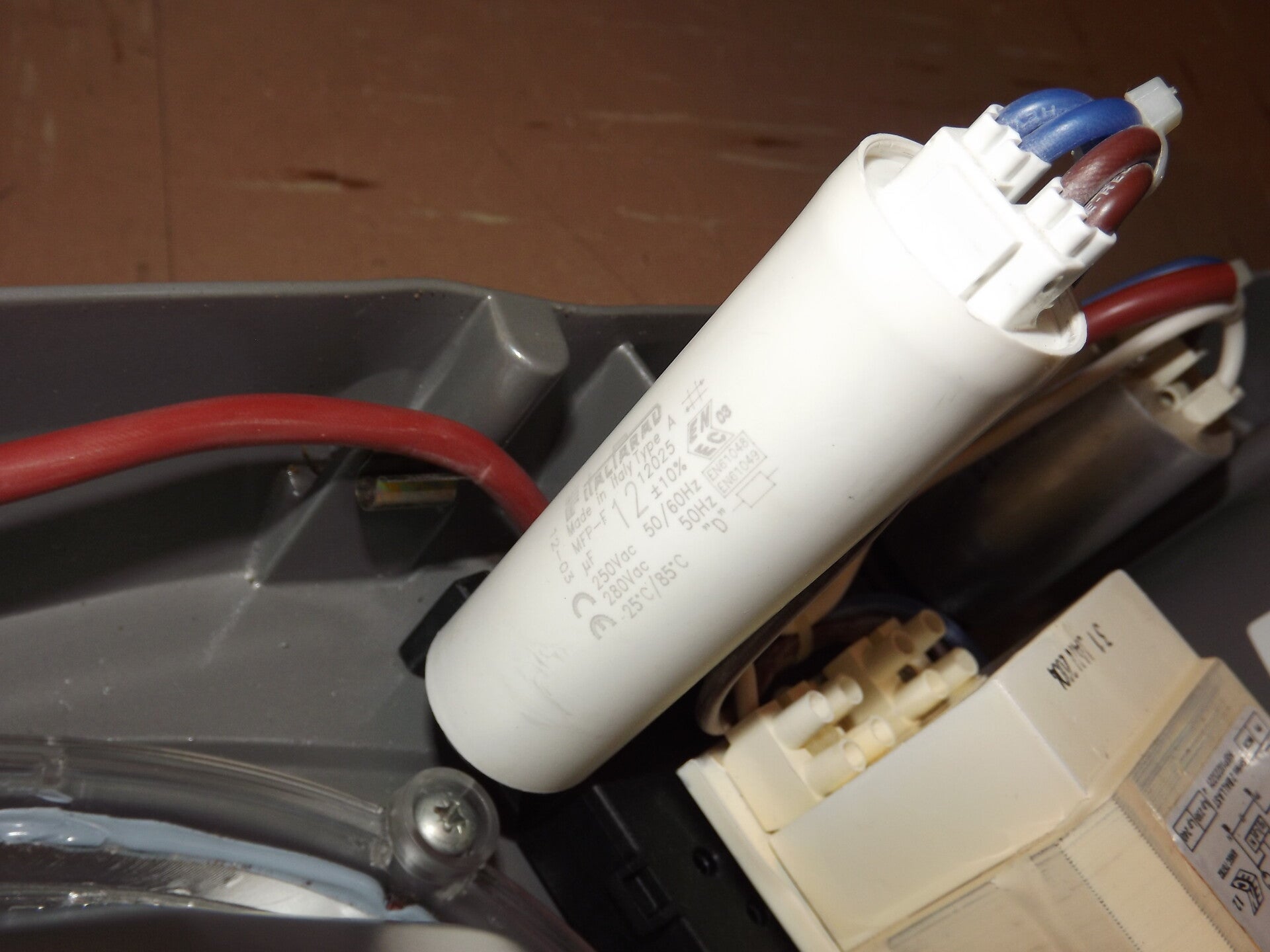

An ItalFarad 12μF capacitor sits in a vertical position next to the optic.
The lamp is situated with its base at the front of the lantern.
