My Collection: Philips MA50-GO*1/S
| Manufacturer | Philips |
| Catalogue Number (model) | MA50 GO*1/S |
| Wattage | 135W |
| Lamp-Type | SOX |
| Gear | Original |
| Ballast | Philips BSX 135 H96 9136 540 972 |
| Ignitor | Philips SX74 |
| Capacitor | ITT MP MP52/6.8/640 (6.8μF) |
| IP Rating (when new) | IP54 |
| Date Of Manufacture | 18/02/1993 |
| Date On Photocell Socket | ~~/12/1992 |
| Date On Capacitor | ~~/02/1985 |
| Date Acquired | 10/10/2024 |
| Collection Number | #64 |

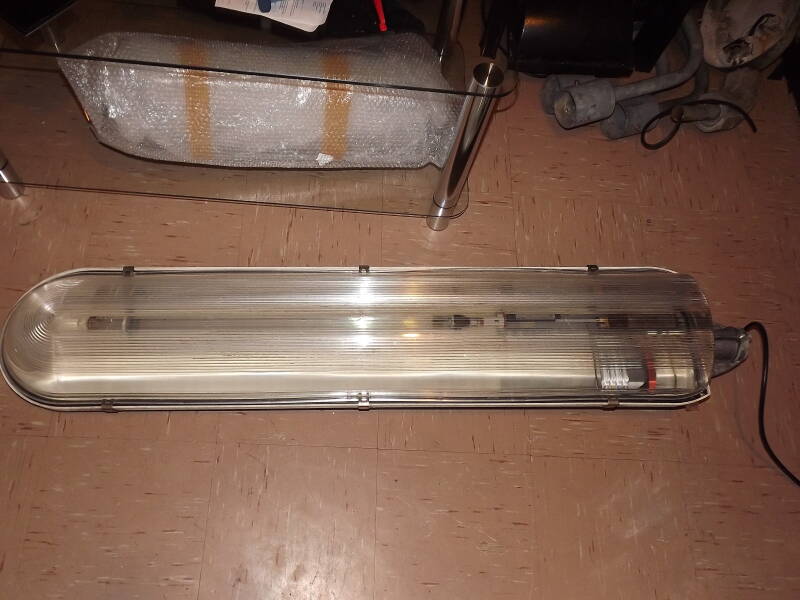

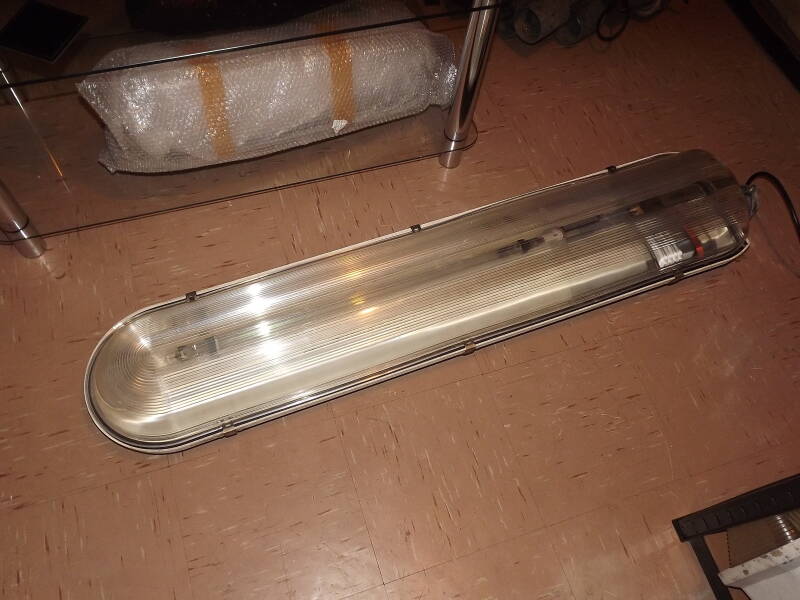

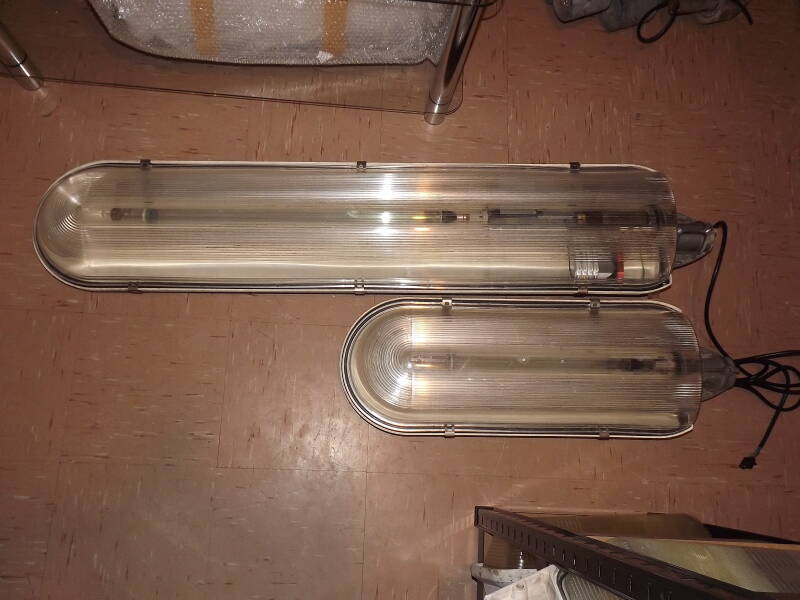

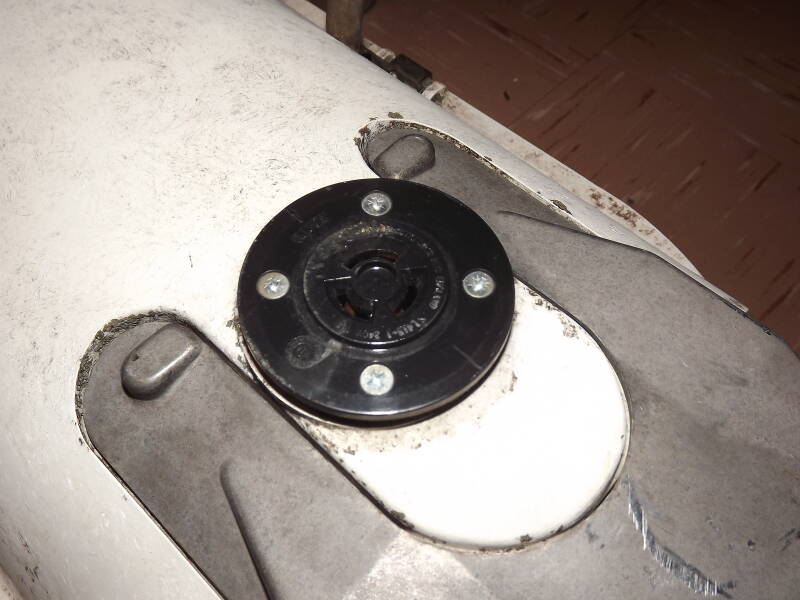

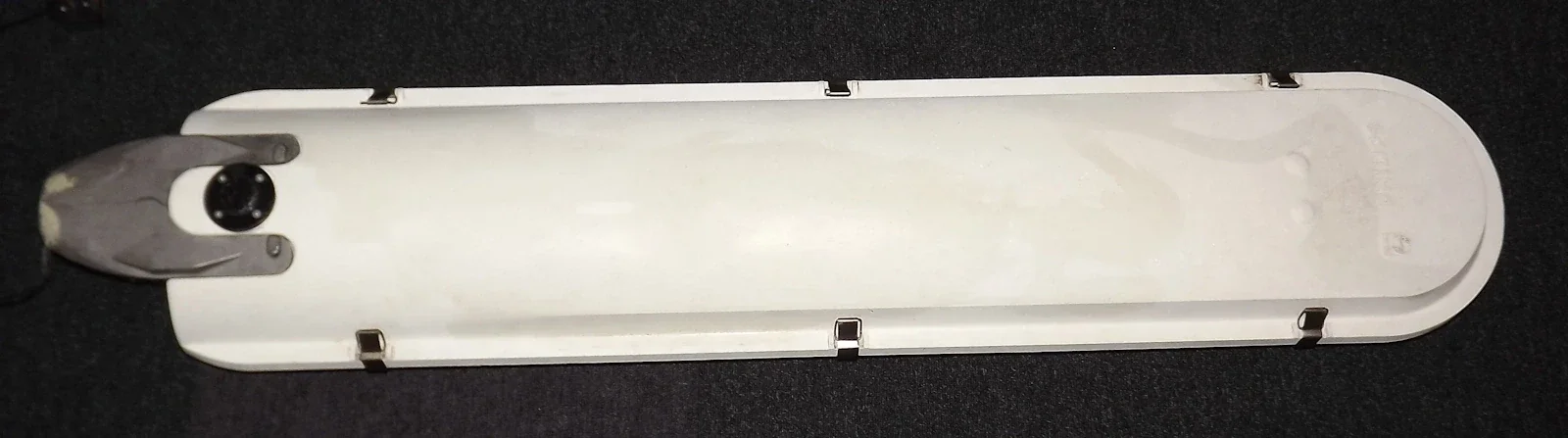

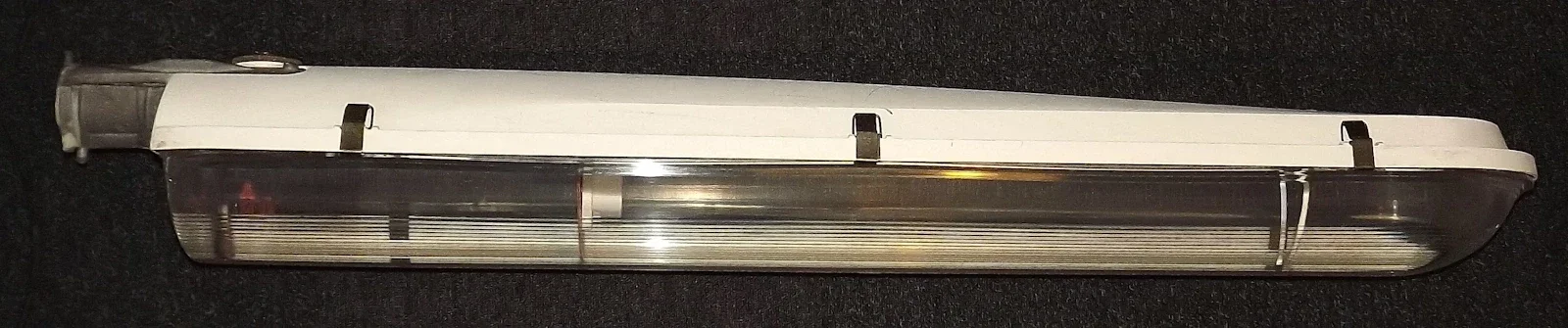

One of my largest lanterns, the MA50-GO*1/S is the gear-in-head version of the MA50 for 135W SOX. It shares the same canopy as the remote-geared MA60 for 180W SOX. The lantern measures roughly 140cm long - almost exactly twice the length of the remote MA90! The *1 in the name indicates a factory-fitted NEMA photocell socket.

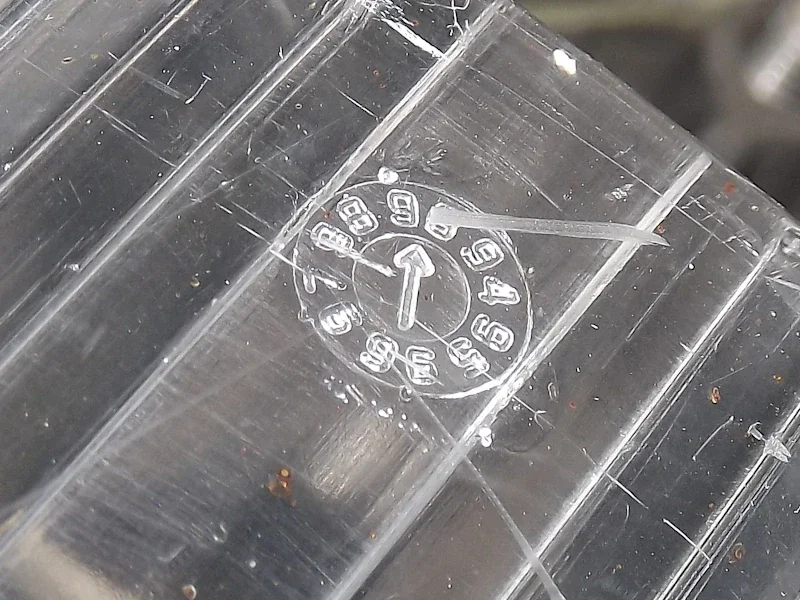

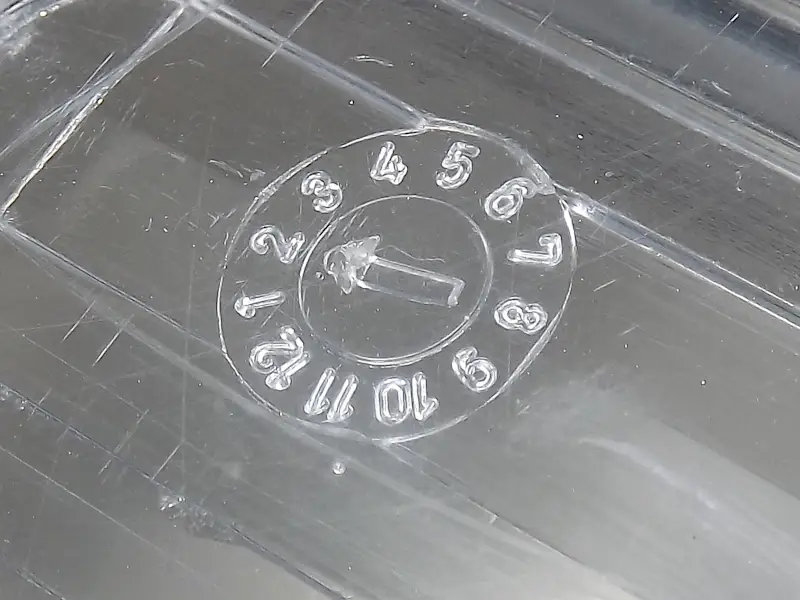

The bowl is dated to February 1993:

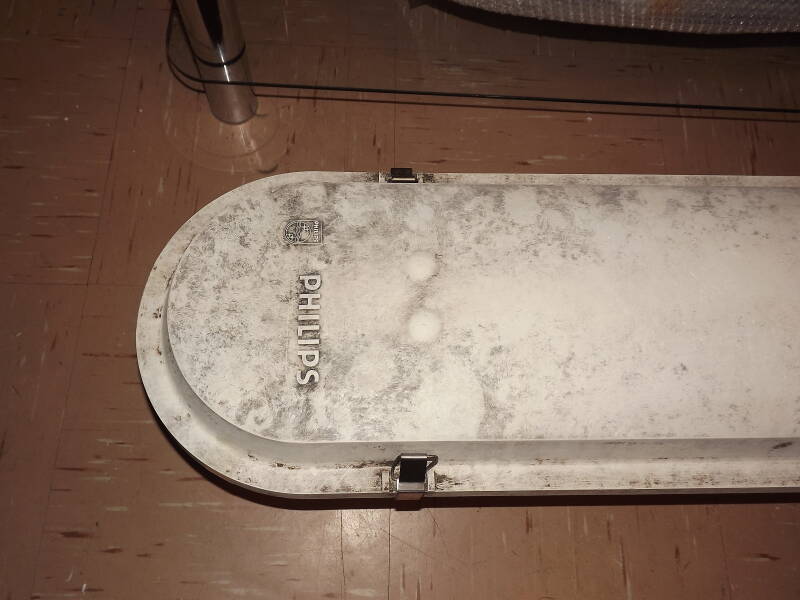

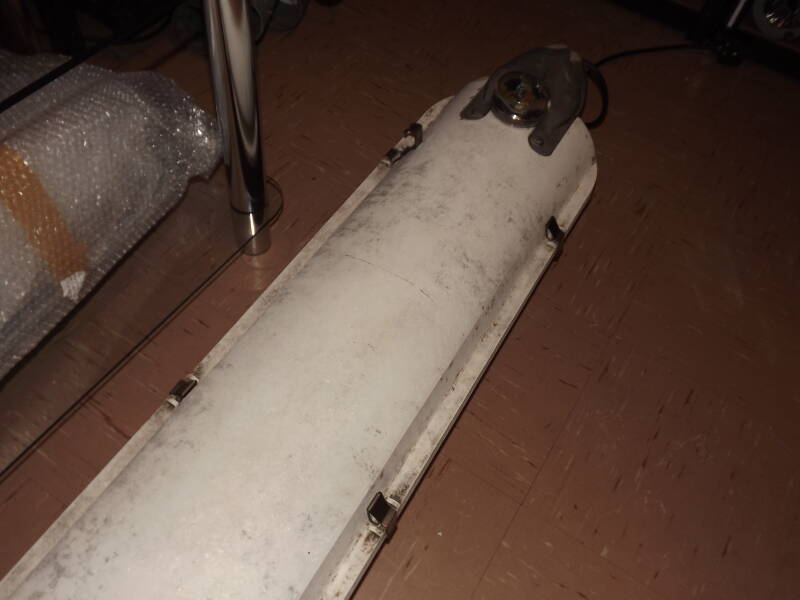

The Philips logo is located in the GRP at the front of the canopy:

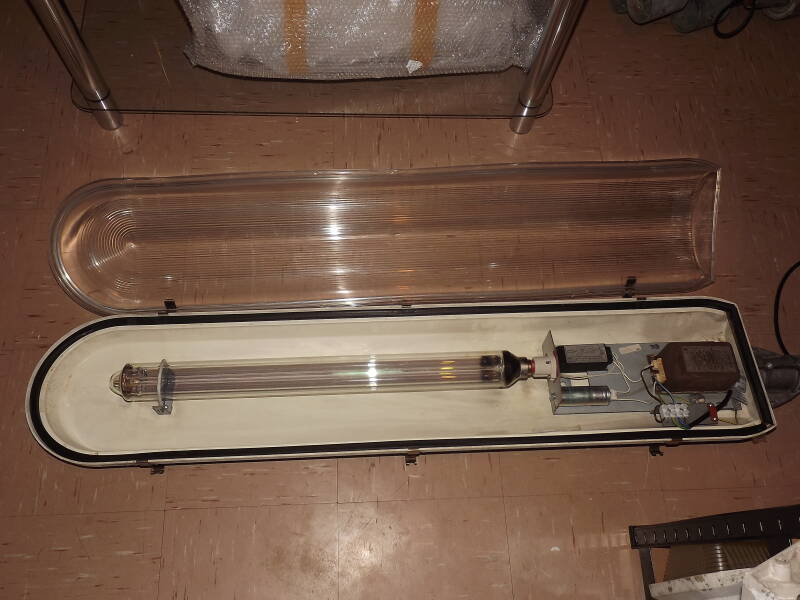

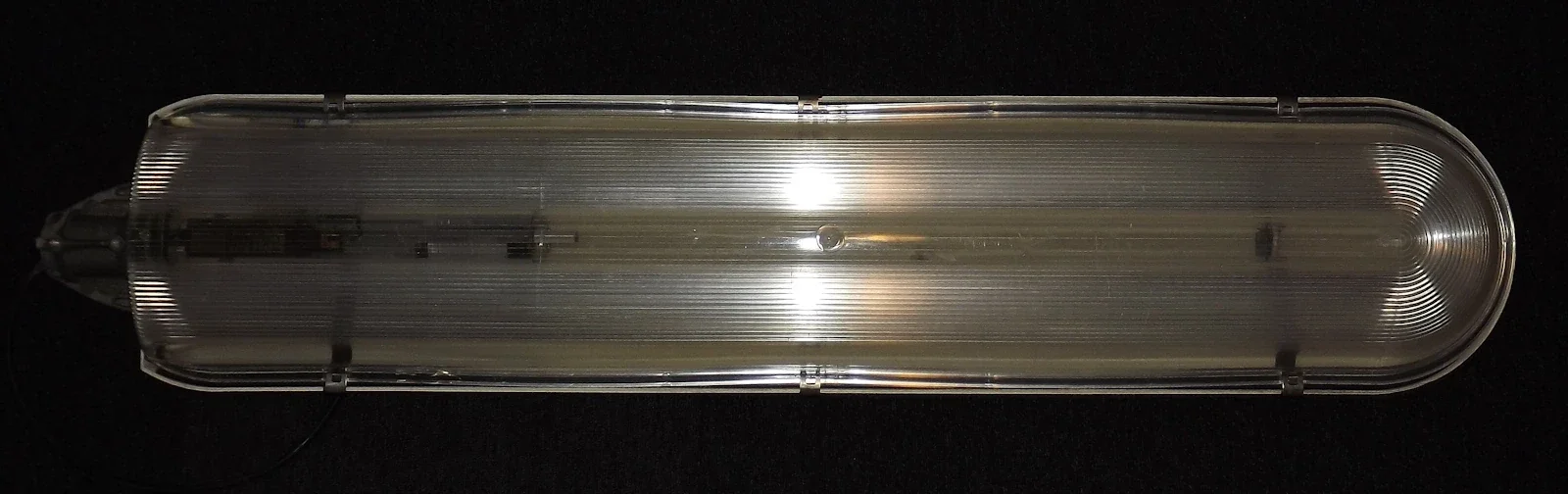

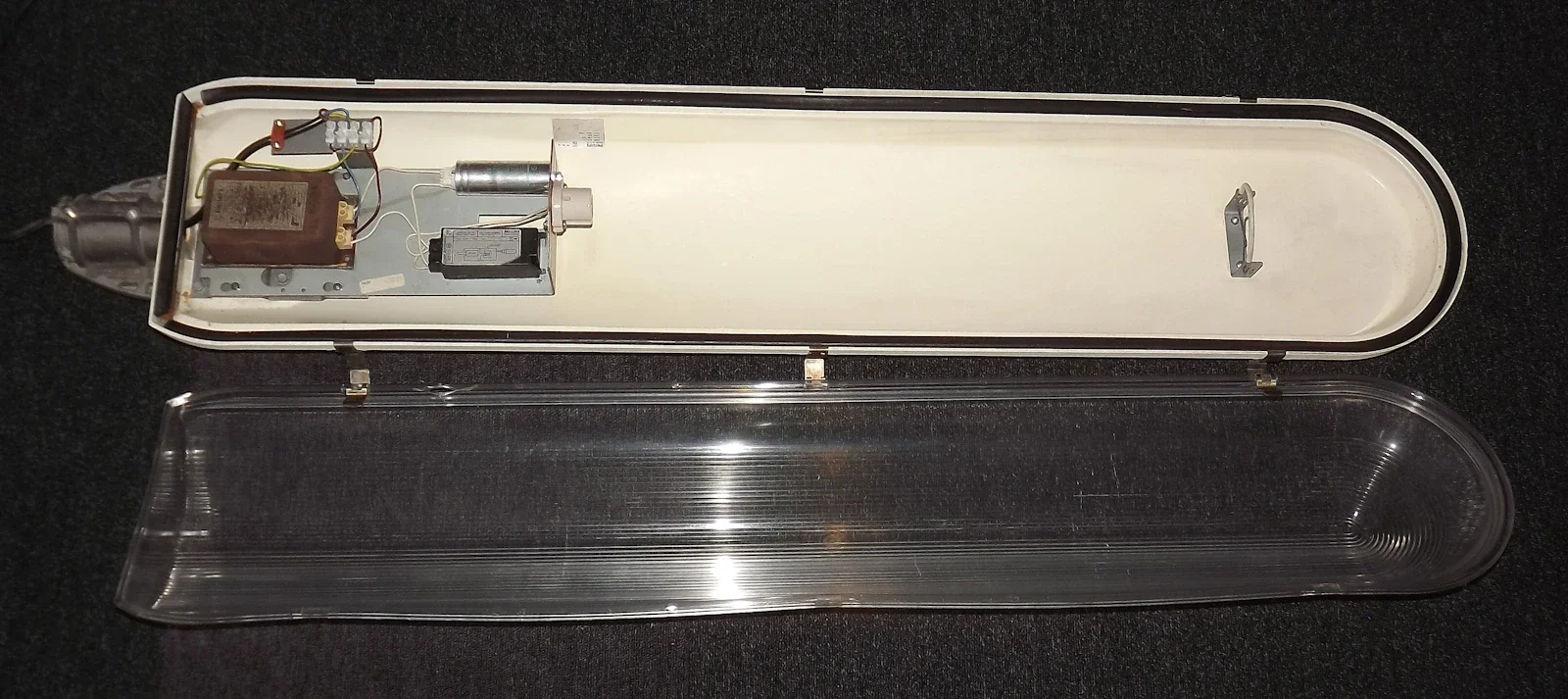

Inside, the reason for the lantern's length becomes clear. A 135W SOX lamp would stretch from the front of the lantern, all the way to the gear-tray, which takes up the remainder of the space.

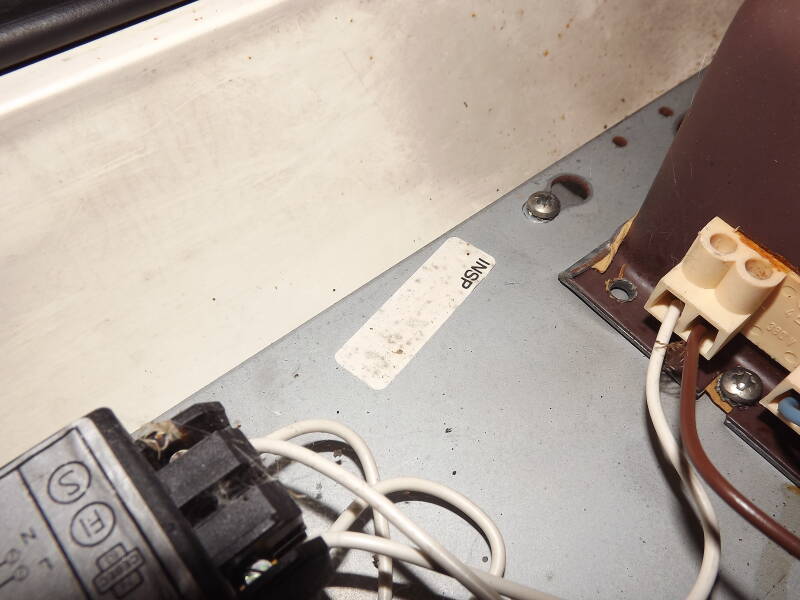

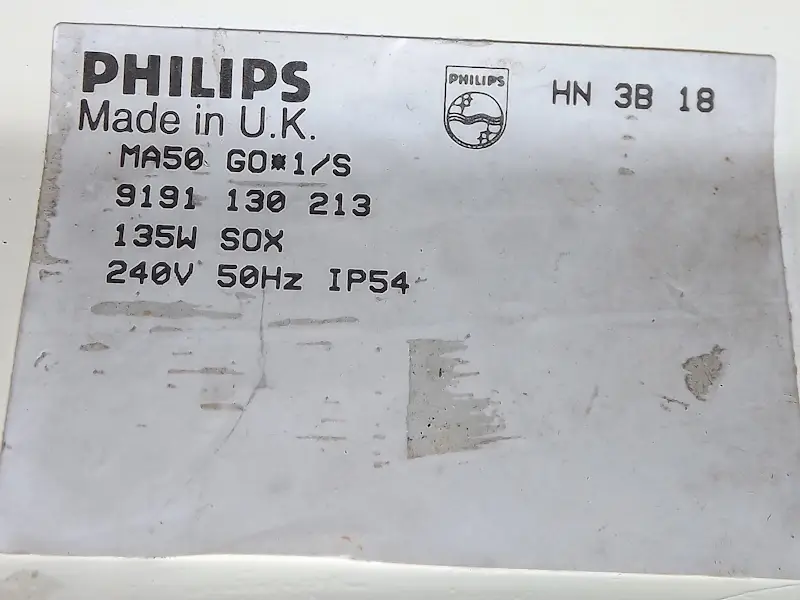

The sticker is located near the lamp-holder, on the canopy. "3B 18" dates this lantern to the 18th February 1993.

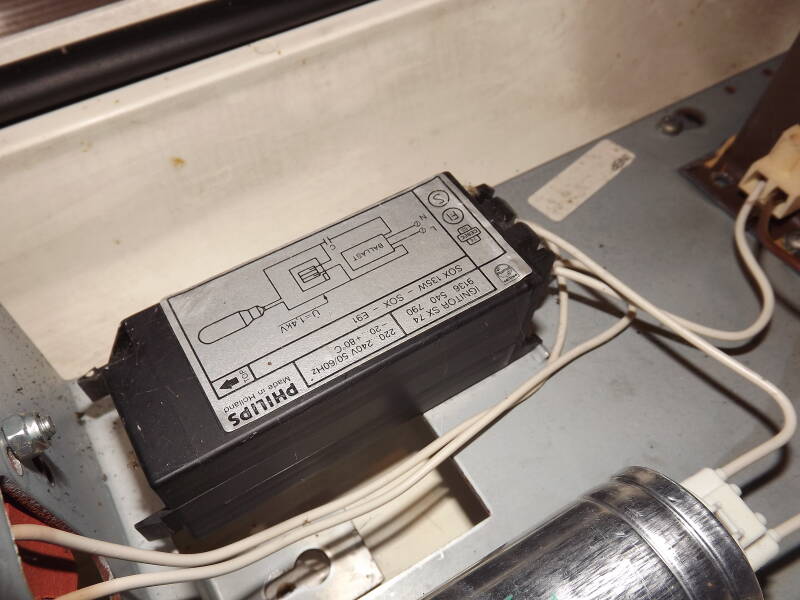

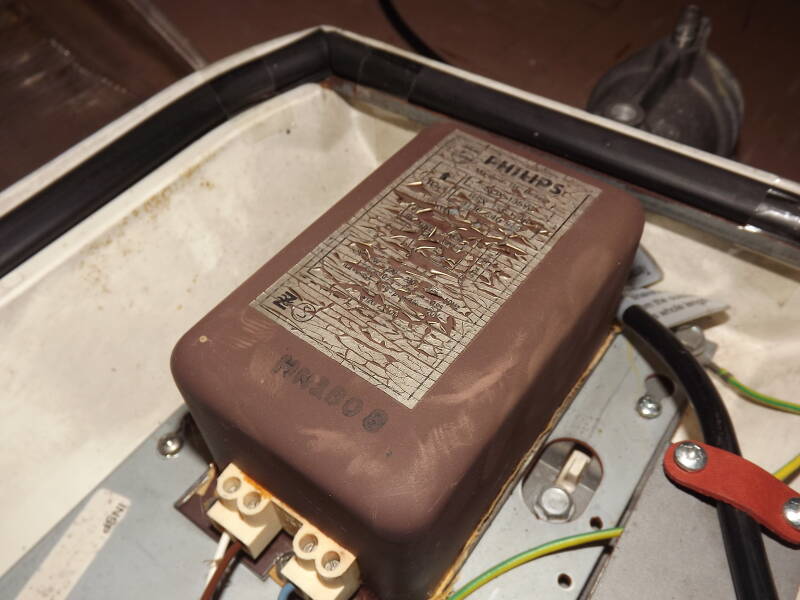

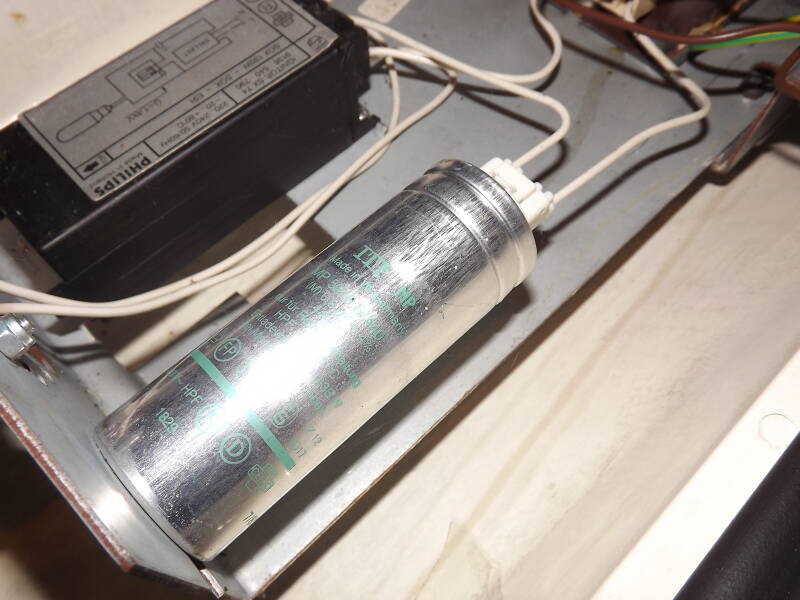

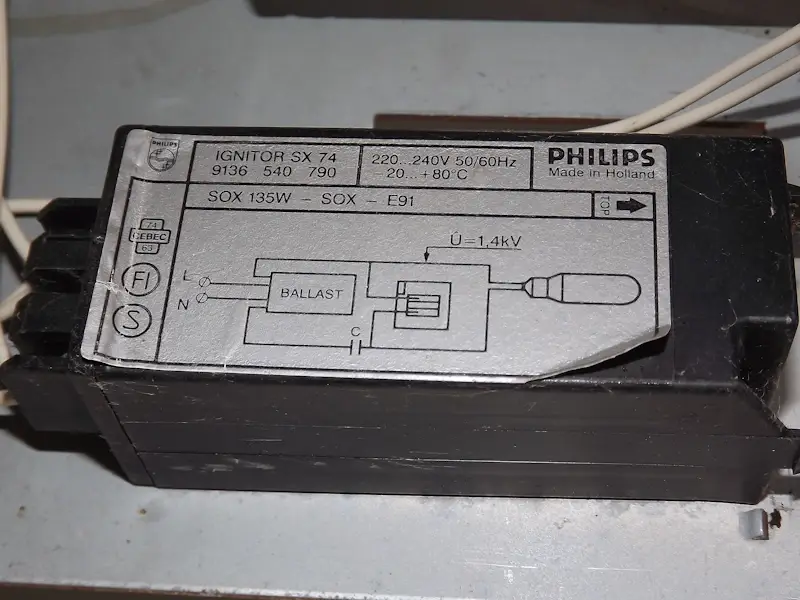

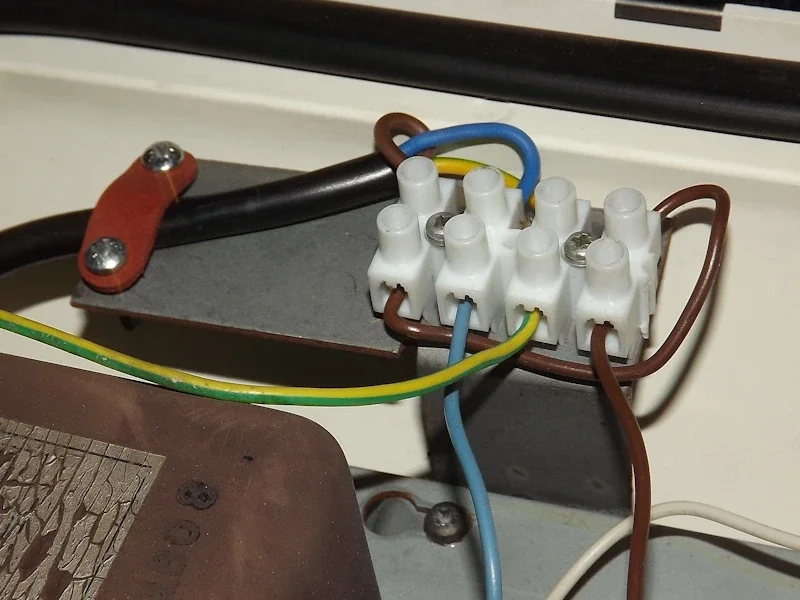

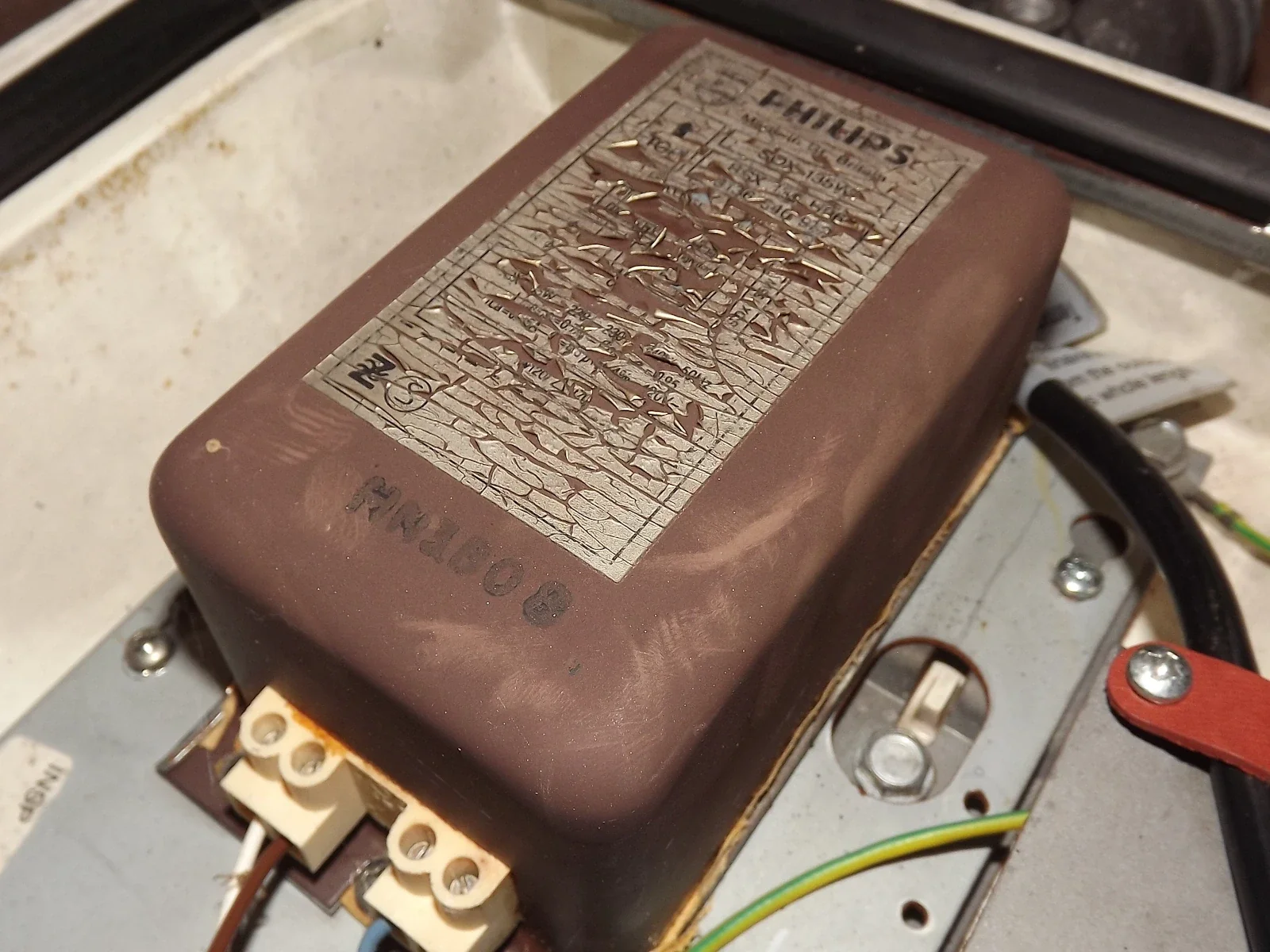

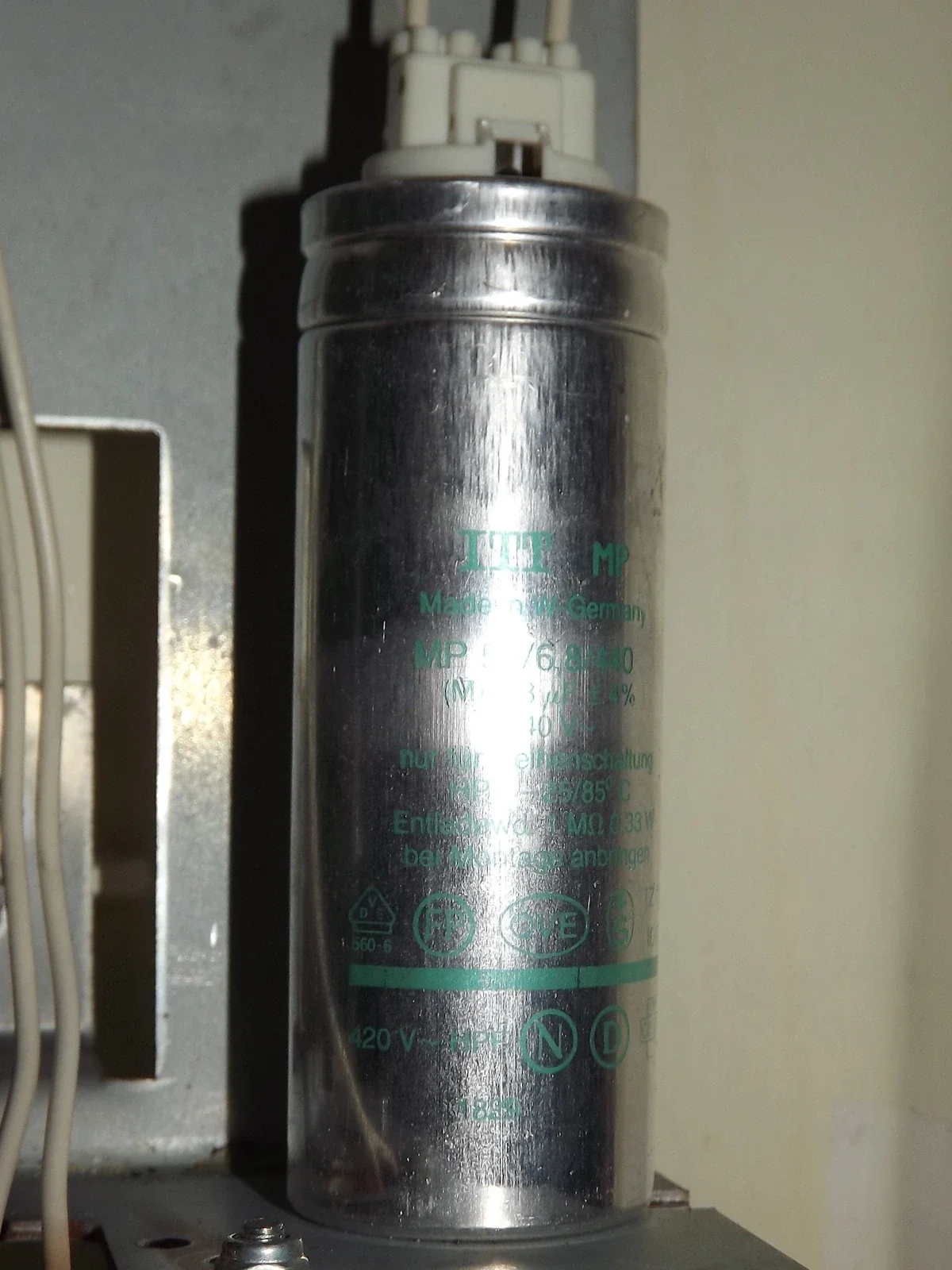

The gear is located on a tray in the back of the lantern. All components appear to be original!

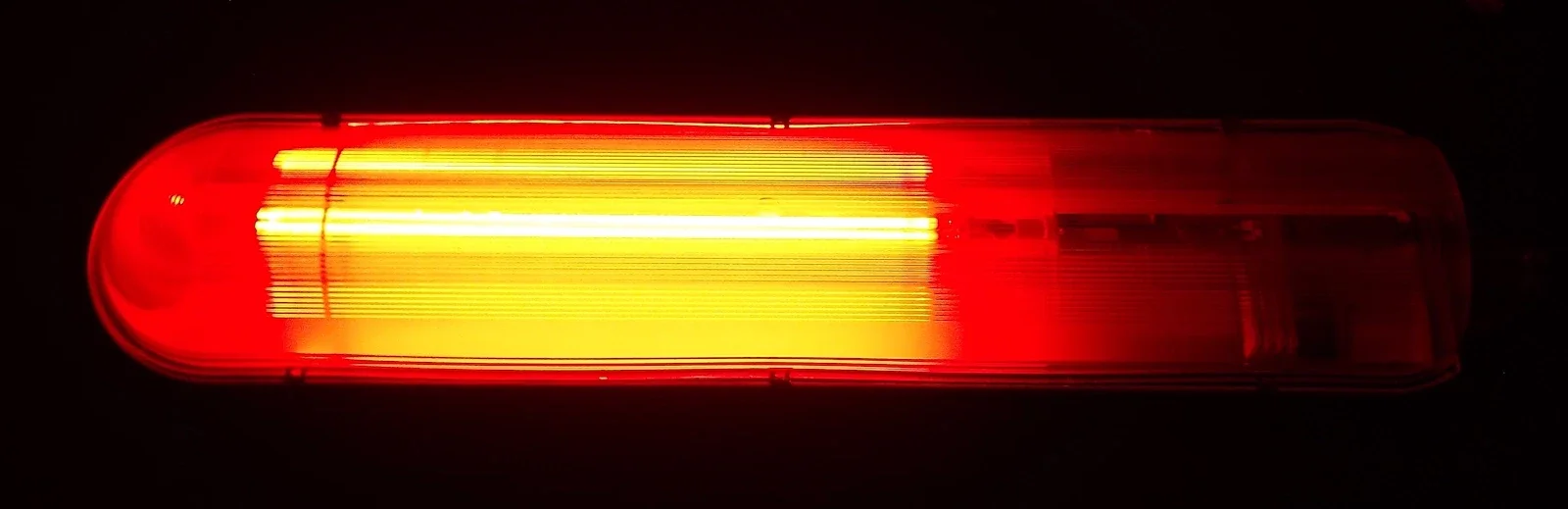

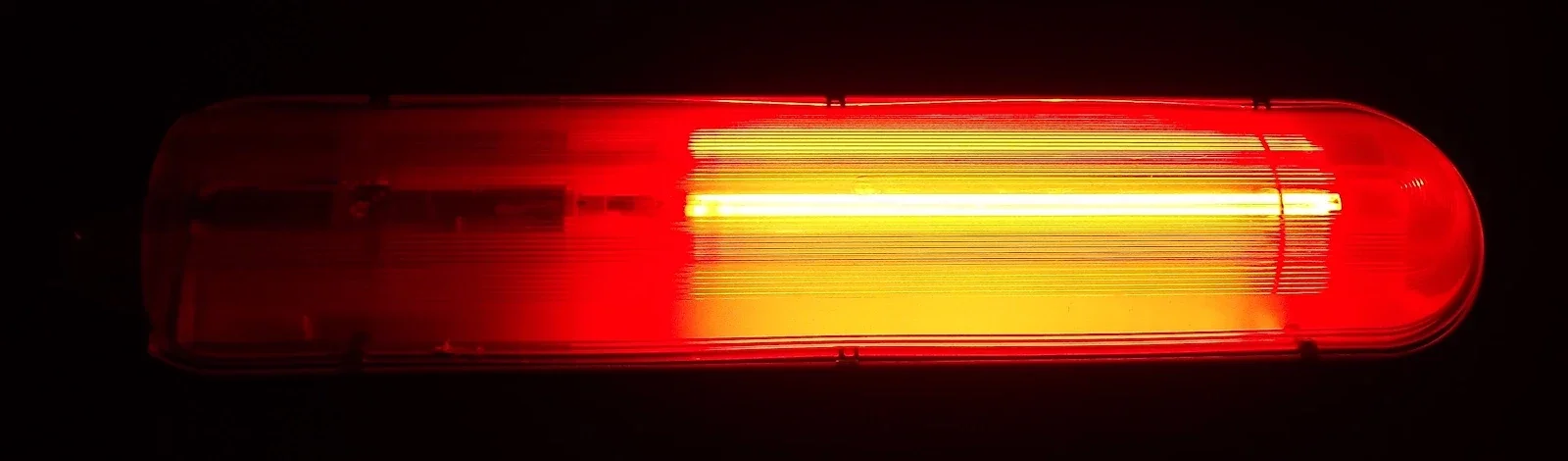

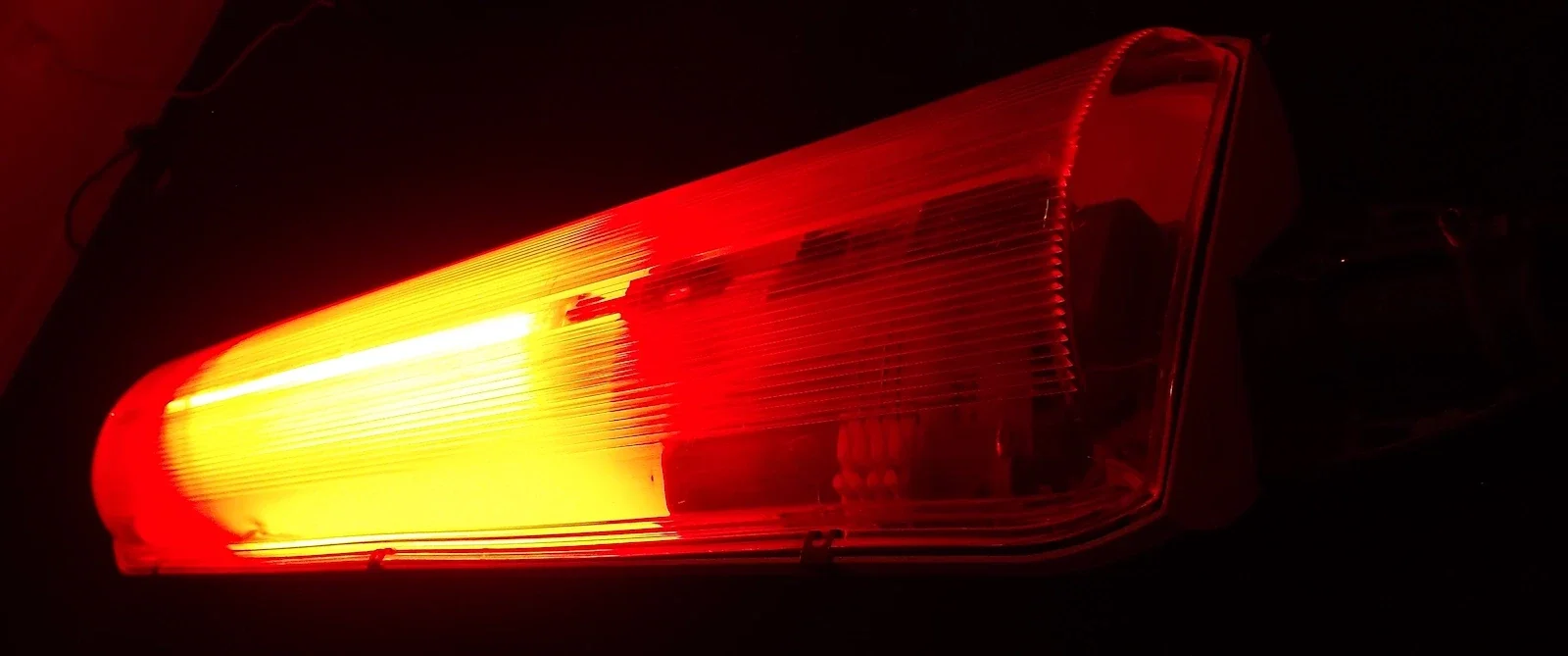

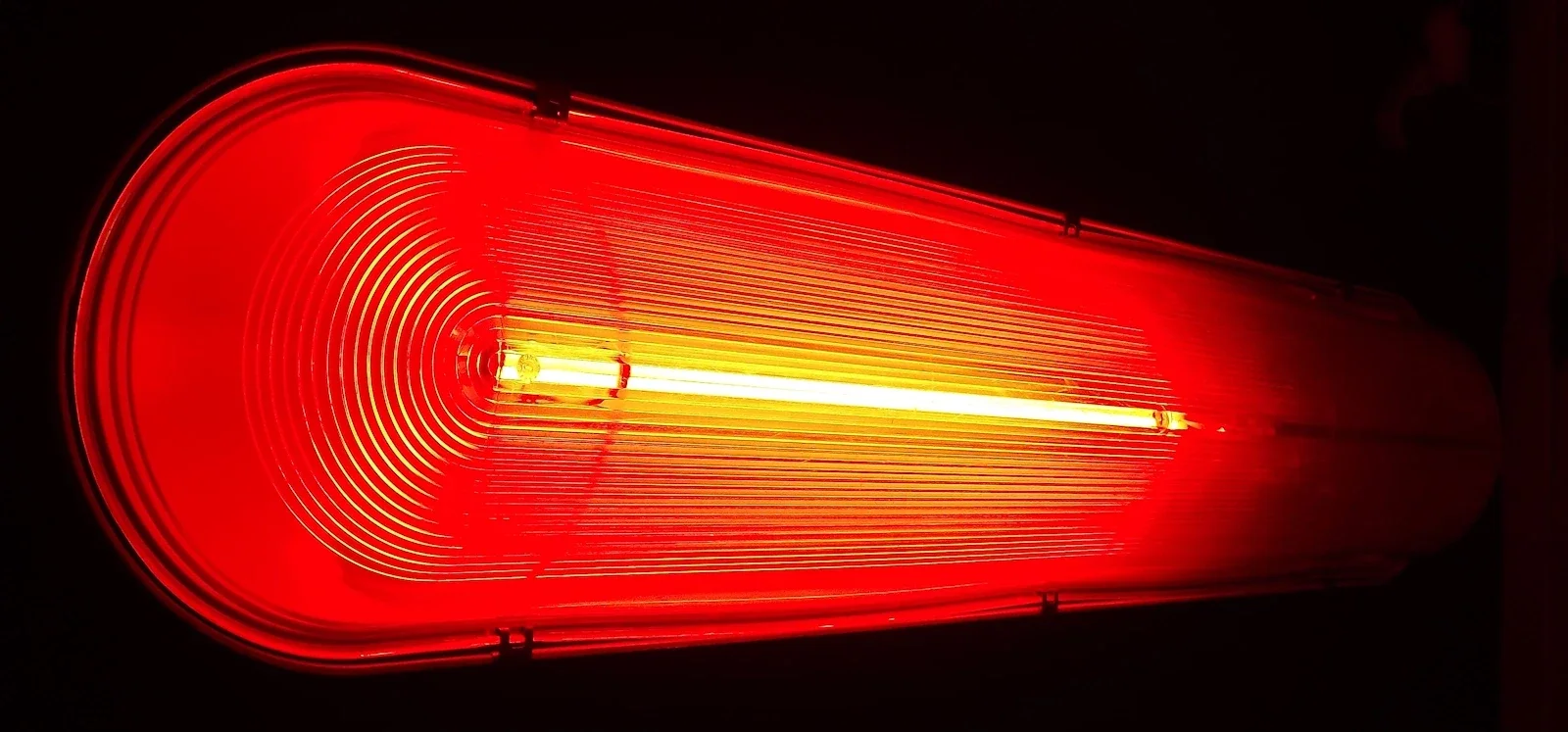

The lantern wired up and working:
