My Collection: Ringtail CS8M

This luminaire was received from collector AgentHalogen_87, brand new in the box. It runs a single 8W T5 tube, and is tested and working. This was my first emergency fixture, and can be switched between non-maintained and maintained modes depending on the intended application. As I have this in maintained mode, it is the CS8M, instead of the CS8NM, although this distinction is based solely off of the mode selected.

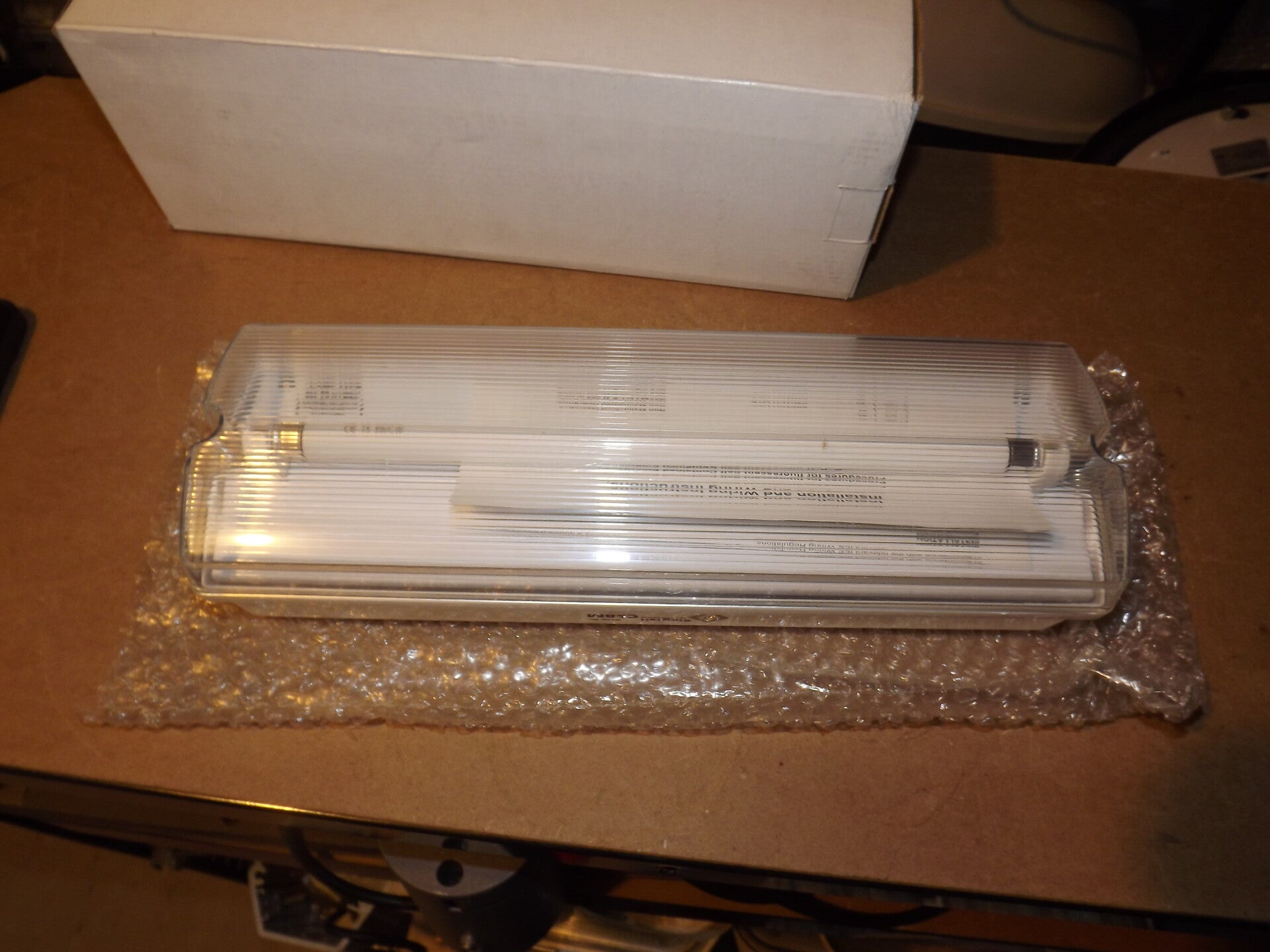

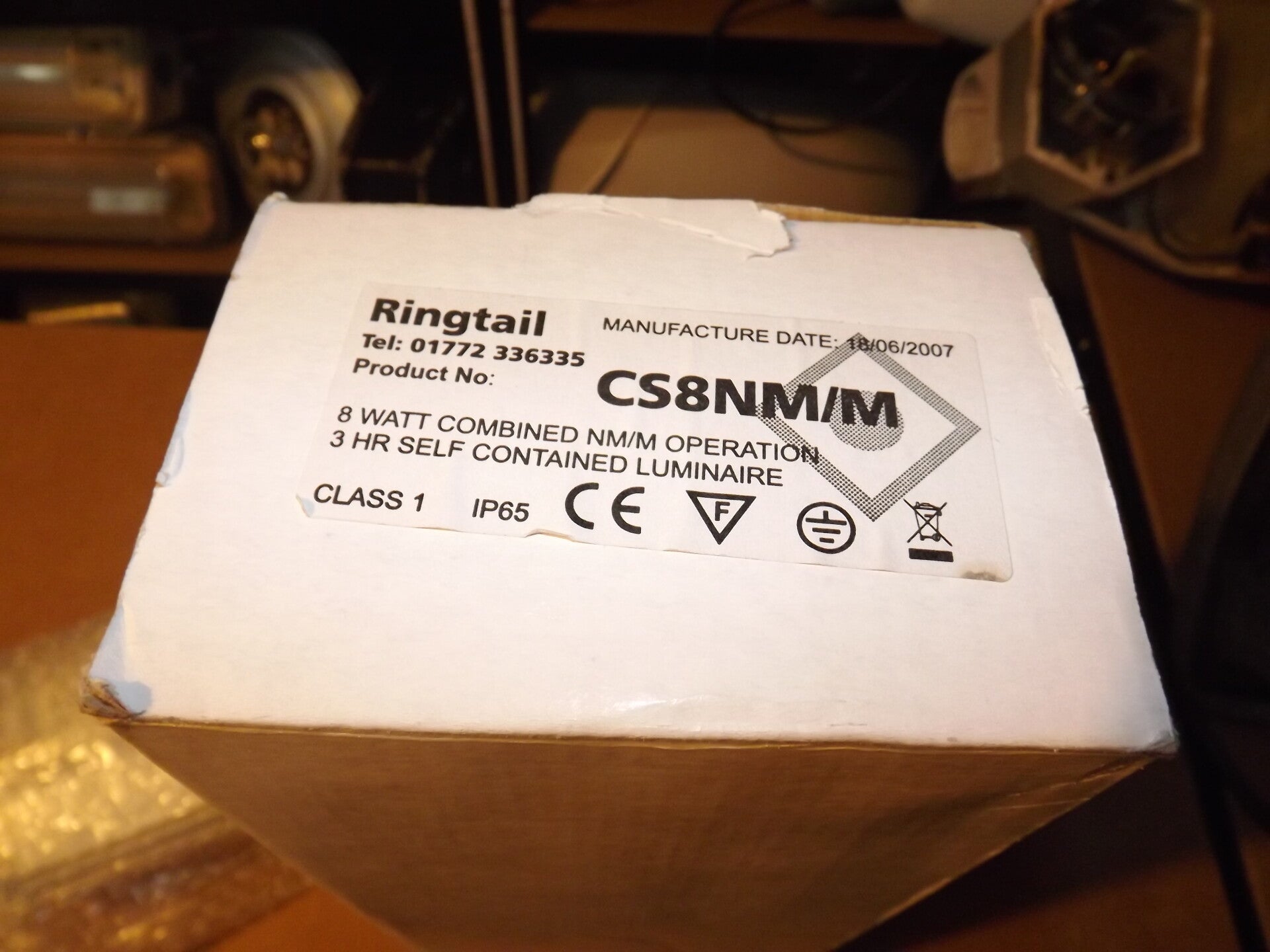

The luminaire came in its original box.

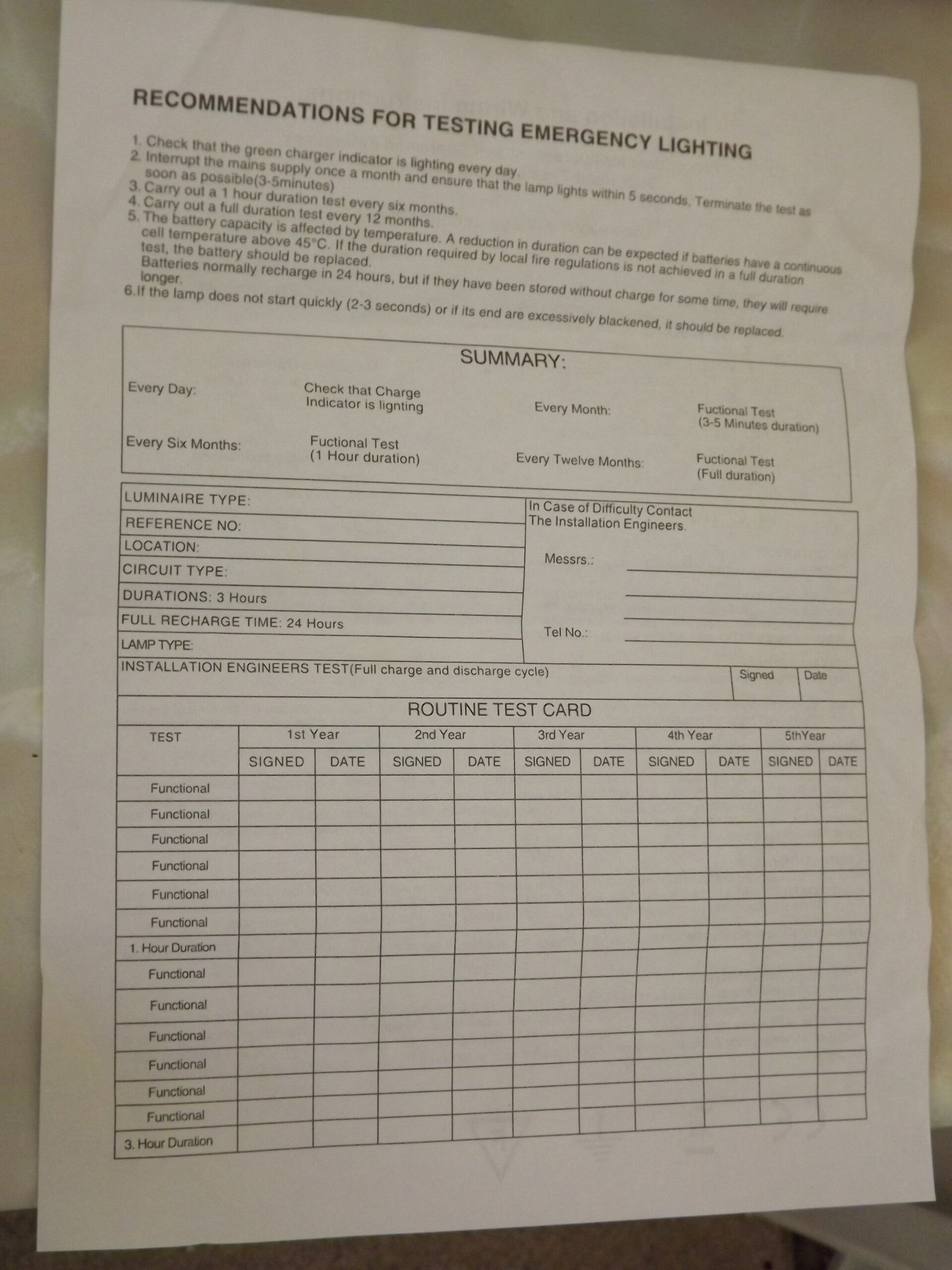

The instructions are present inside the cover, which is held on by a screw at each end.

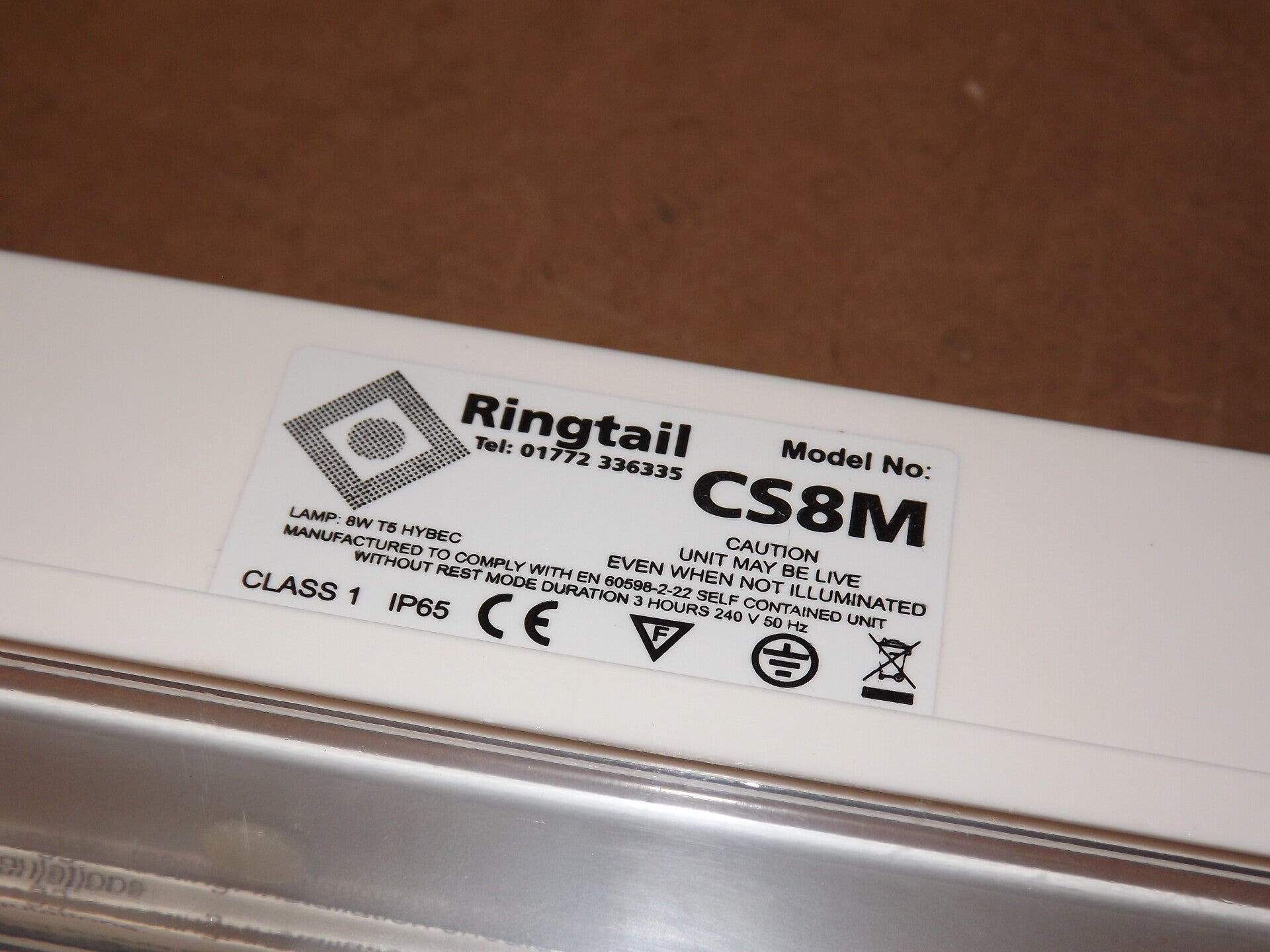

An identification-sticker is placed on the side of the luminaire.

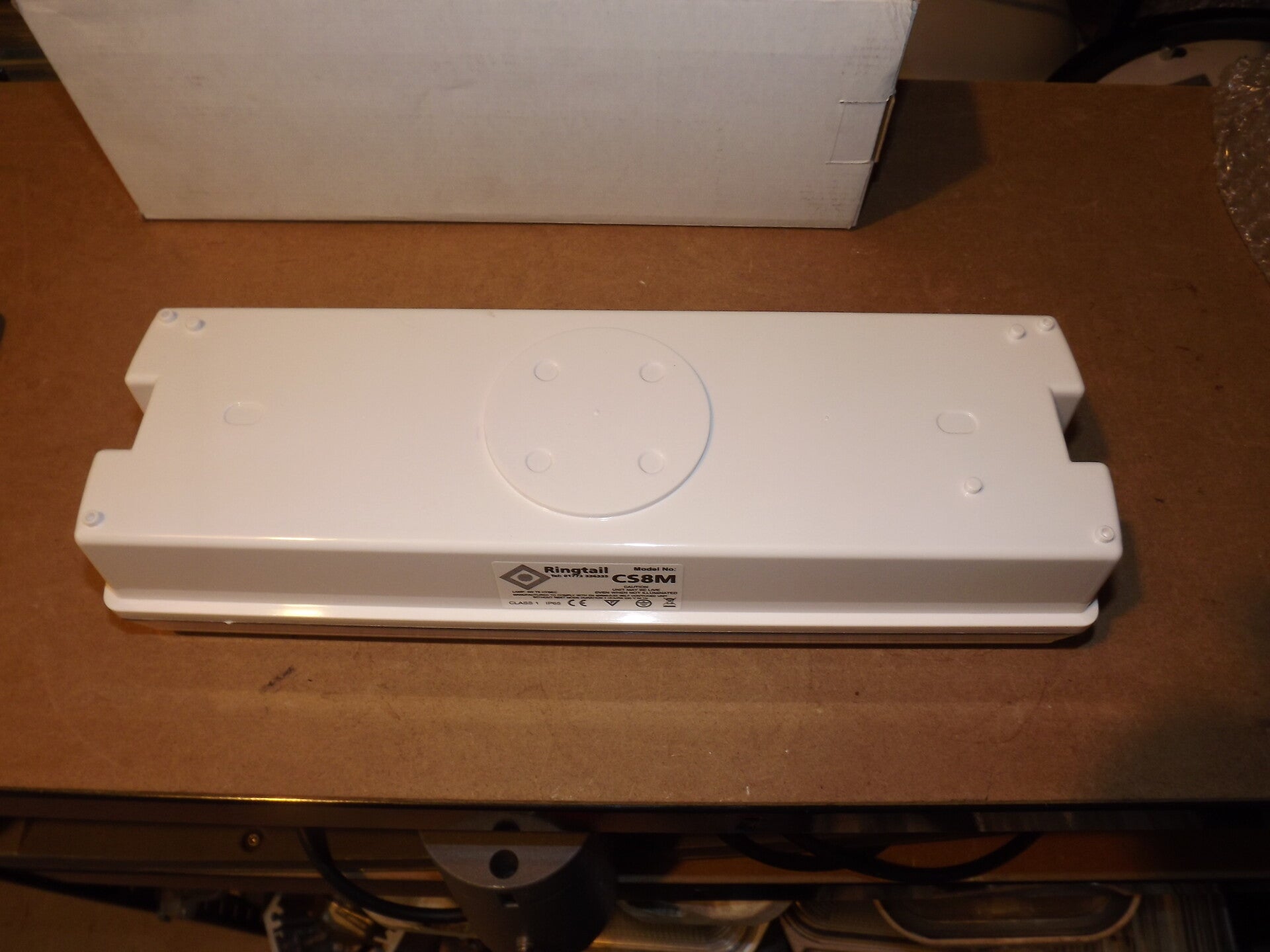

Several screw placeholders are dotted around the top of the body, for mounting. One either side for wall-mounting, and four in the centre presumably for ceiling mounting.

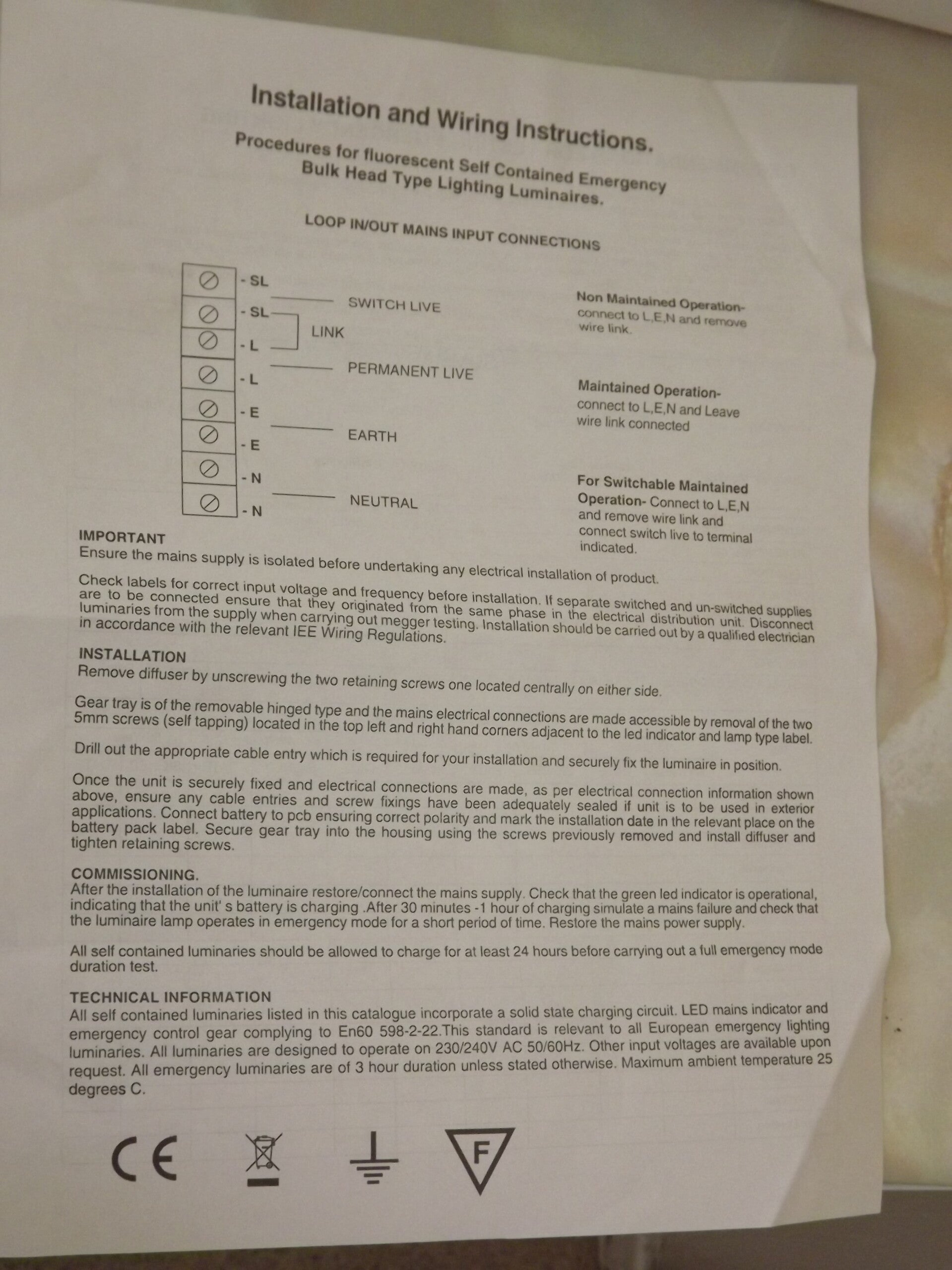

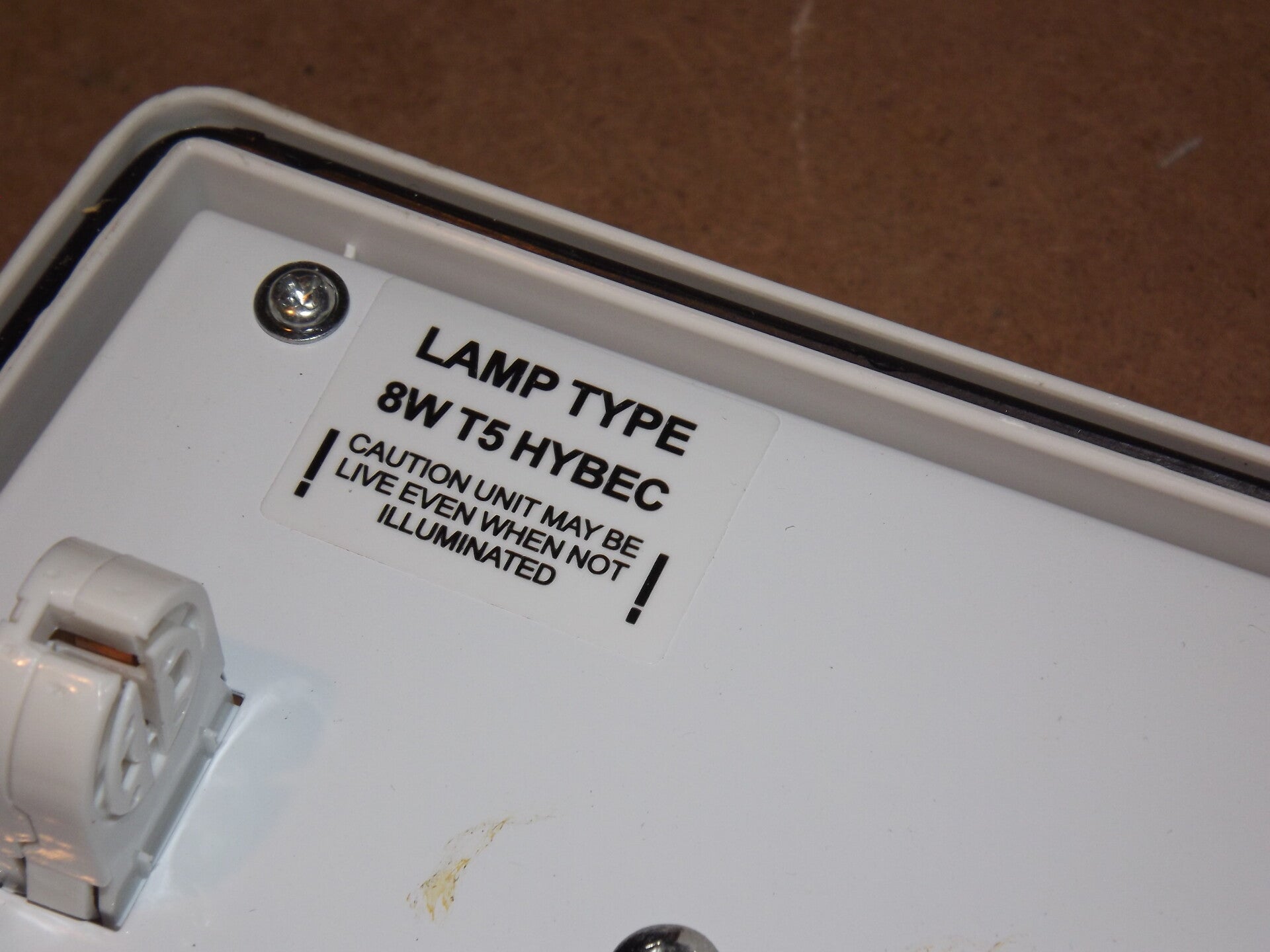

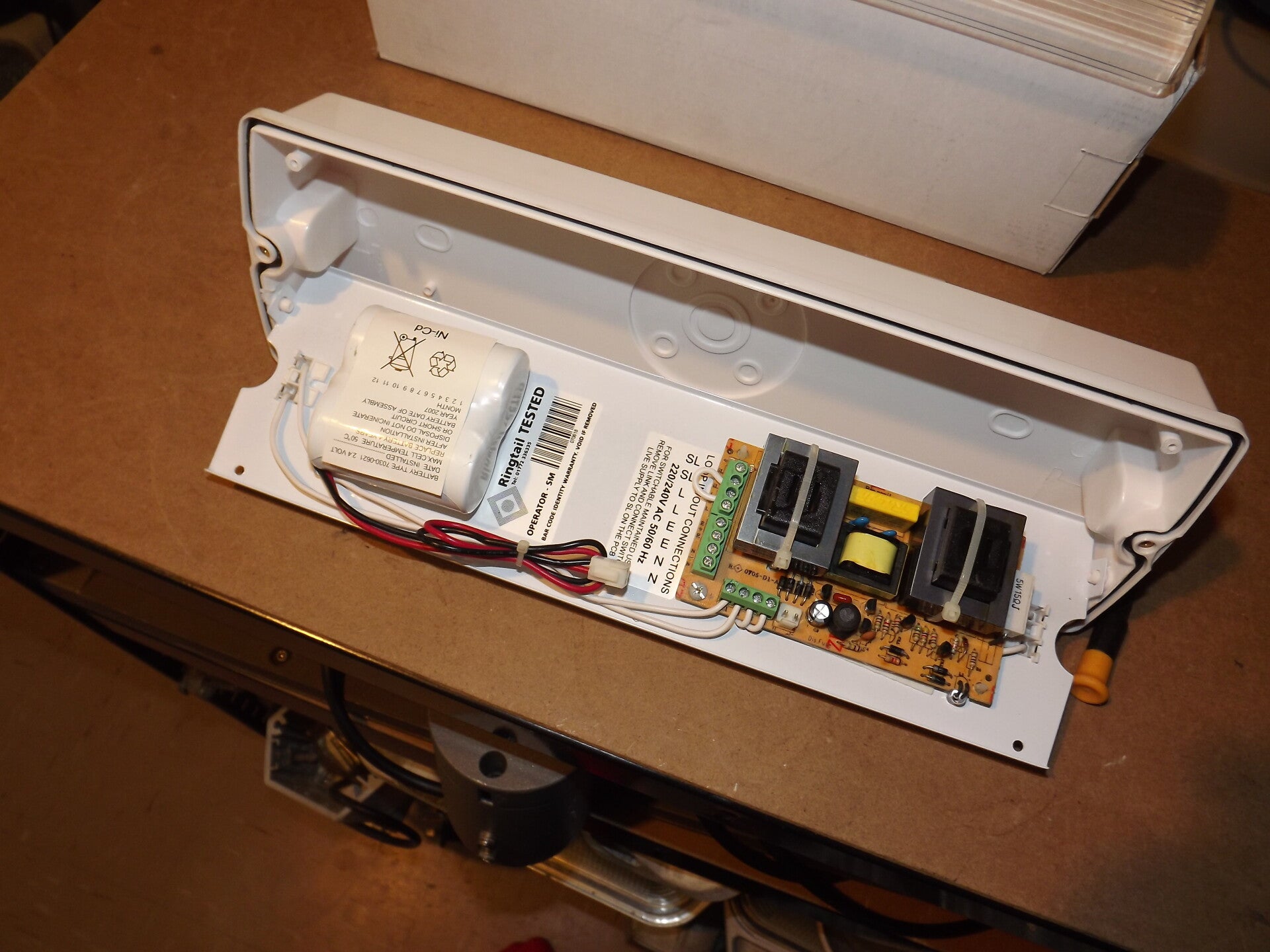

Opening the cover allows the wiring instructions to be accessed.

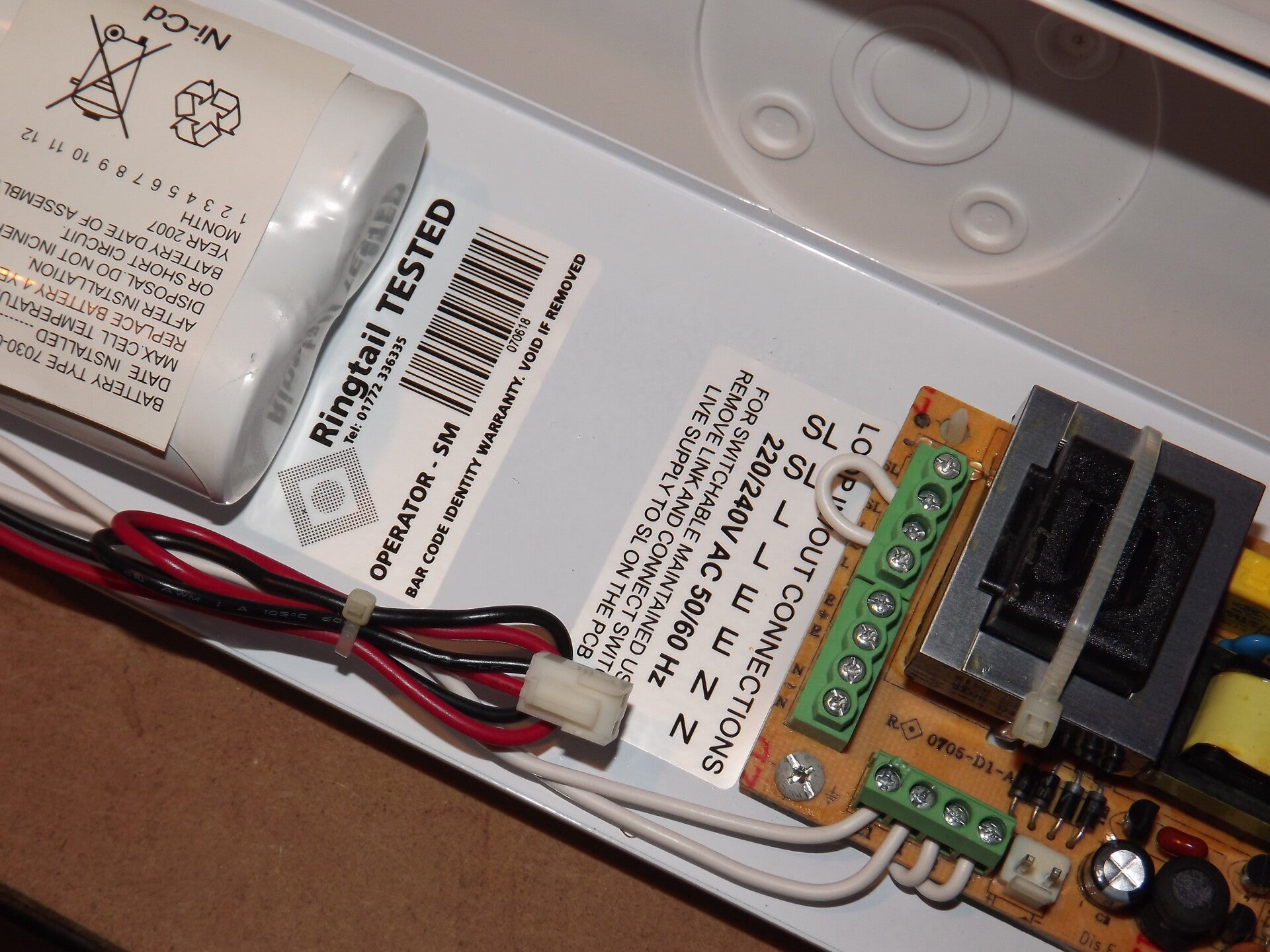

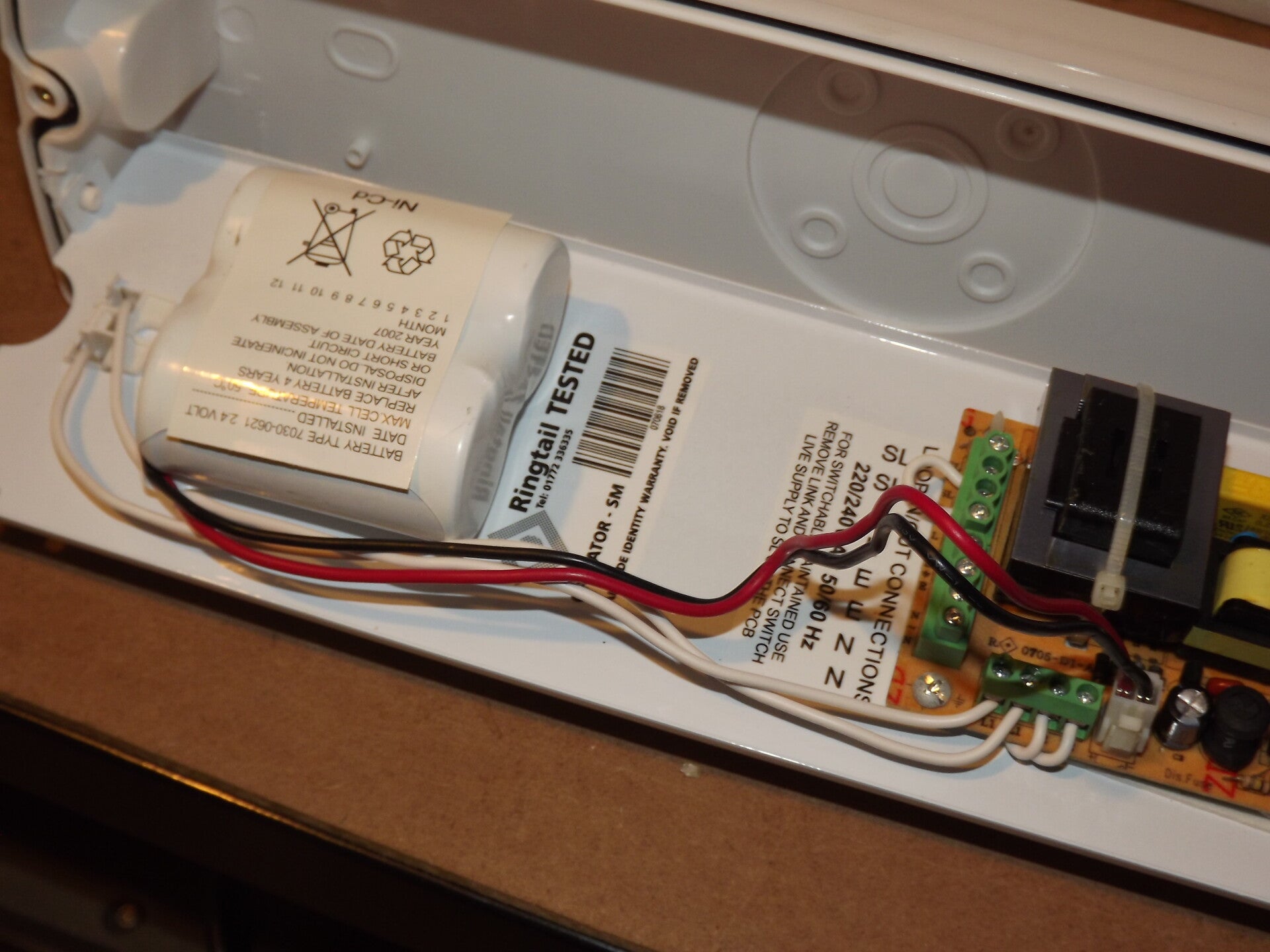

The battery was still working. Connection to the circuit board is provided by a simple clip connector.

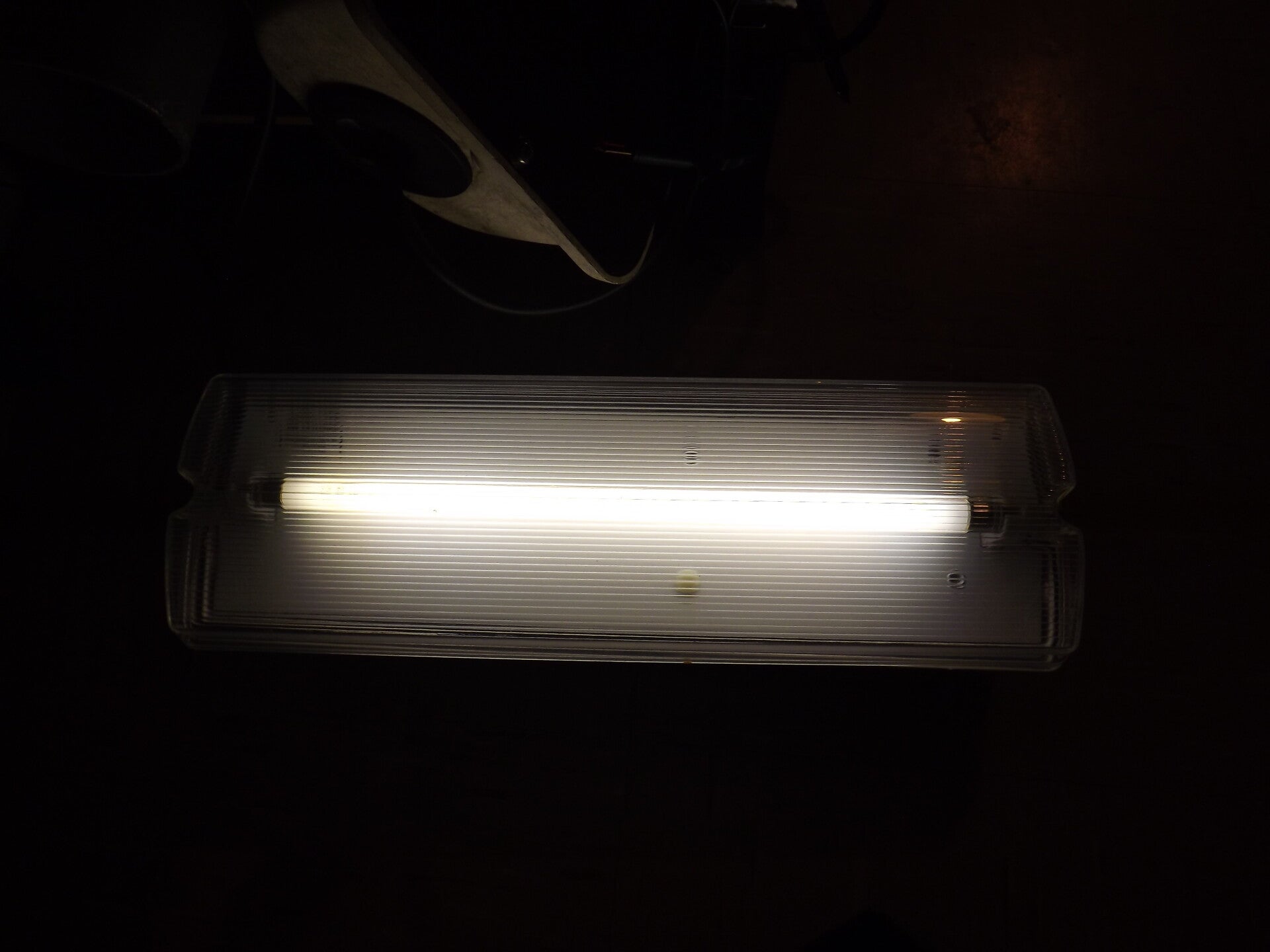

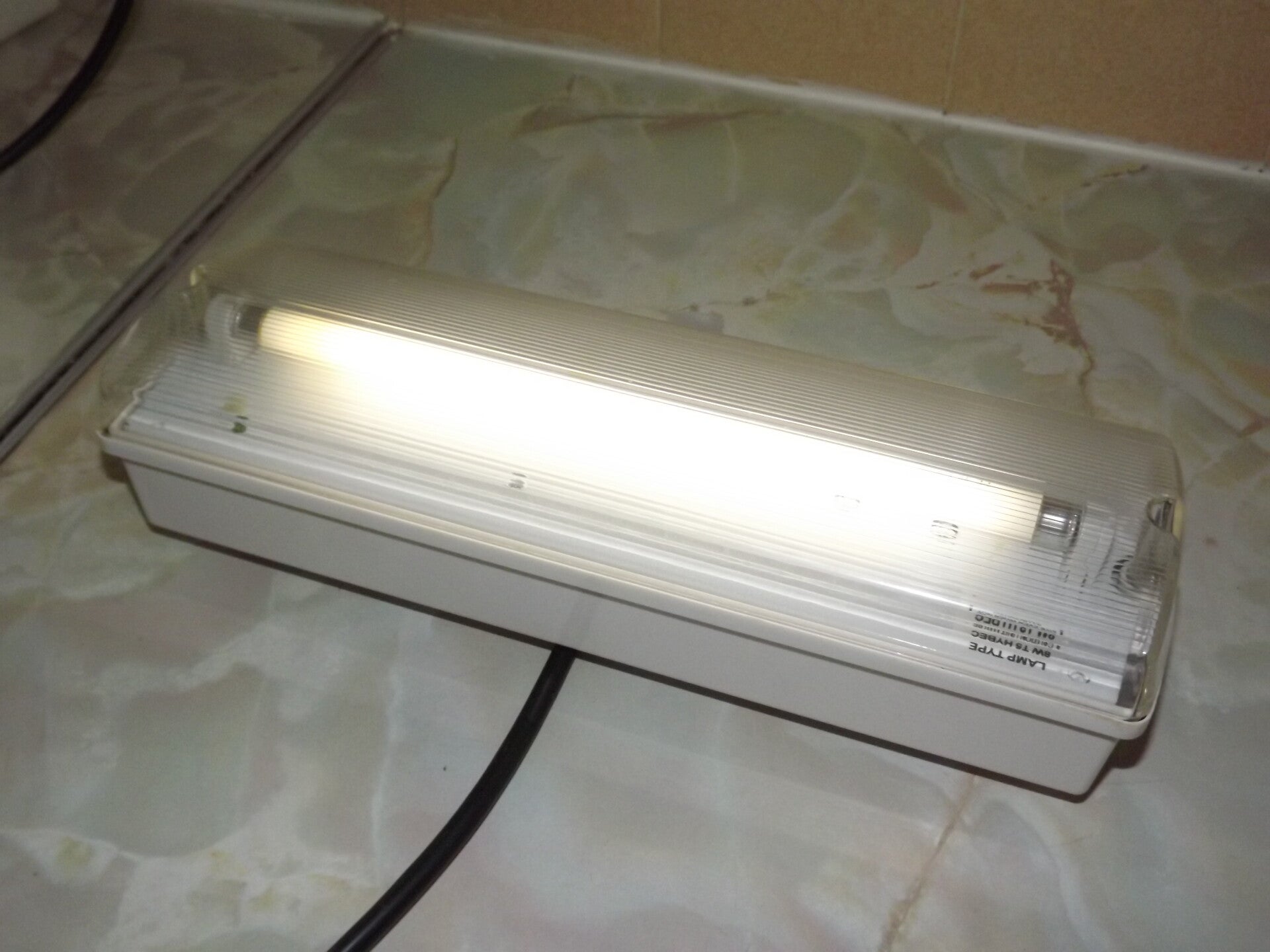

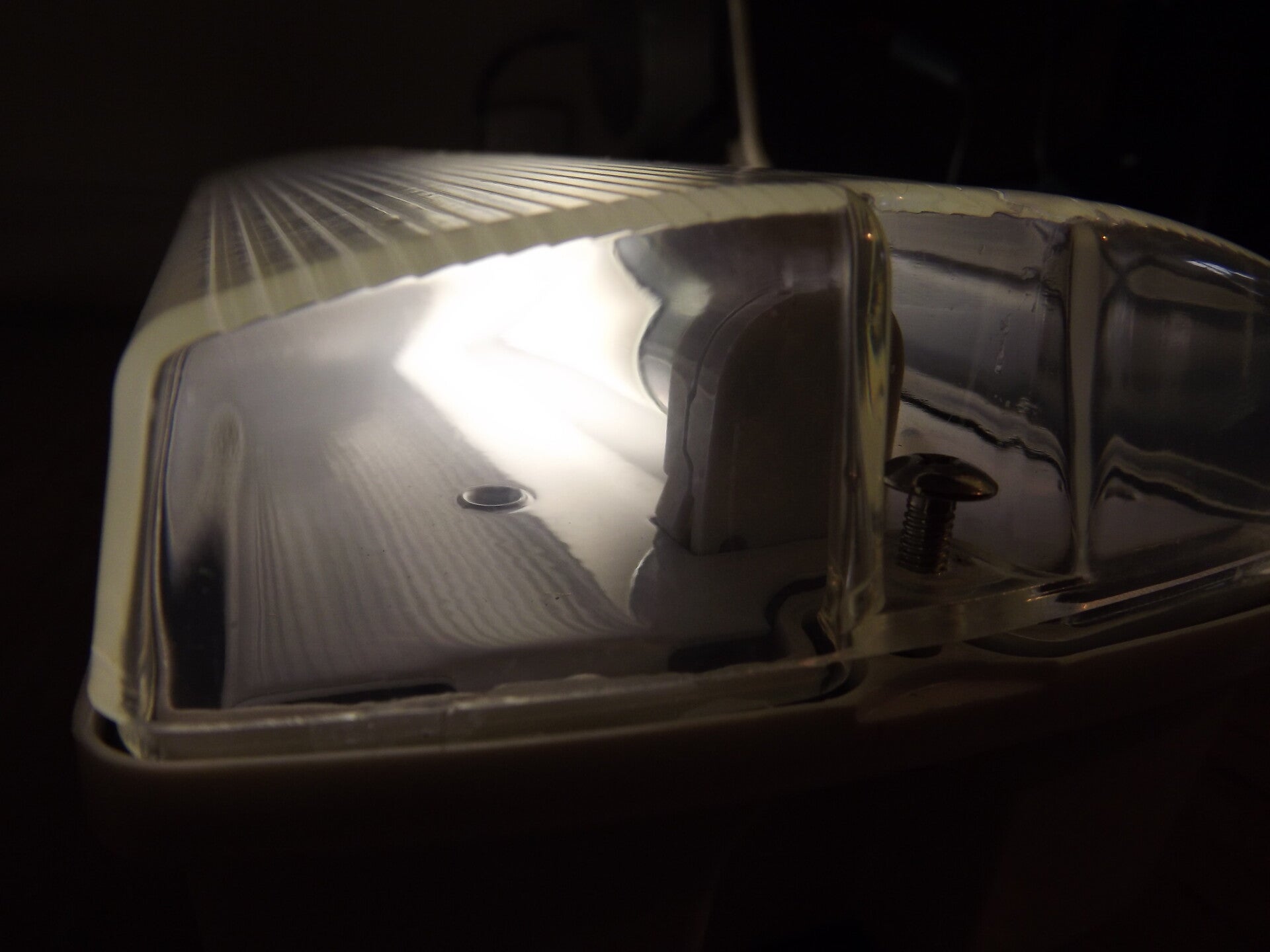

With the battery connected, the light was switched on in its maintained mode.
