My Collection: Siemens Nightwatch 35
| Manufacturer | Siemens |
| Catalogue Number (model) | Nightwatch 35 NW35 |
| Wattage | 35W |
| Lamp-Type | SOX |
| Gear | Original |
| Ballast | Vossloh Schwabe BSX 35 LL - S (35.122) |
| Ignitor | Siemens ISX35-P |
| Capacitor | DNA CA/250 8μF |
| IP Rating (when new) | IP54 |
| Date Of Manufacture | 1990s |
| Date on Photocell Socket | 11/07/1994 - 17/07/1994 |
| Date on Capacitor | ~~/07/1994 |
| Date Acquired | 05/03/2025 |
| Restoration Status | Cleaned |
| Collection Number | #152 |

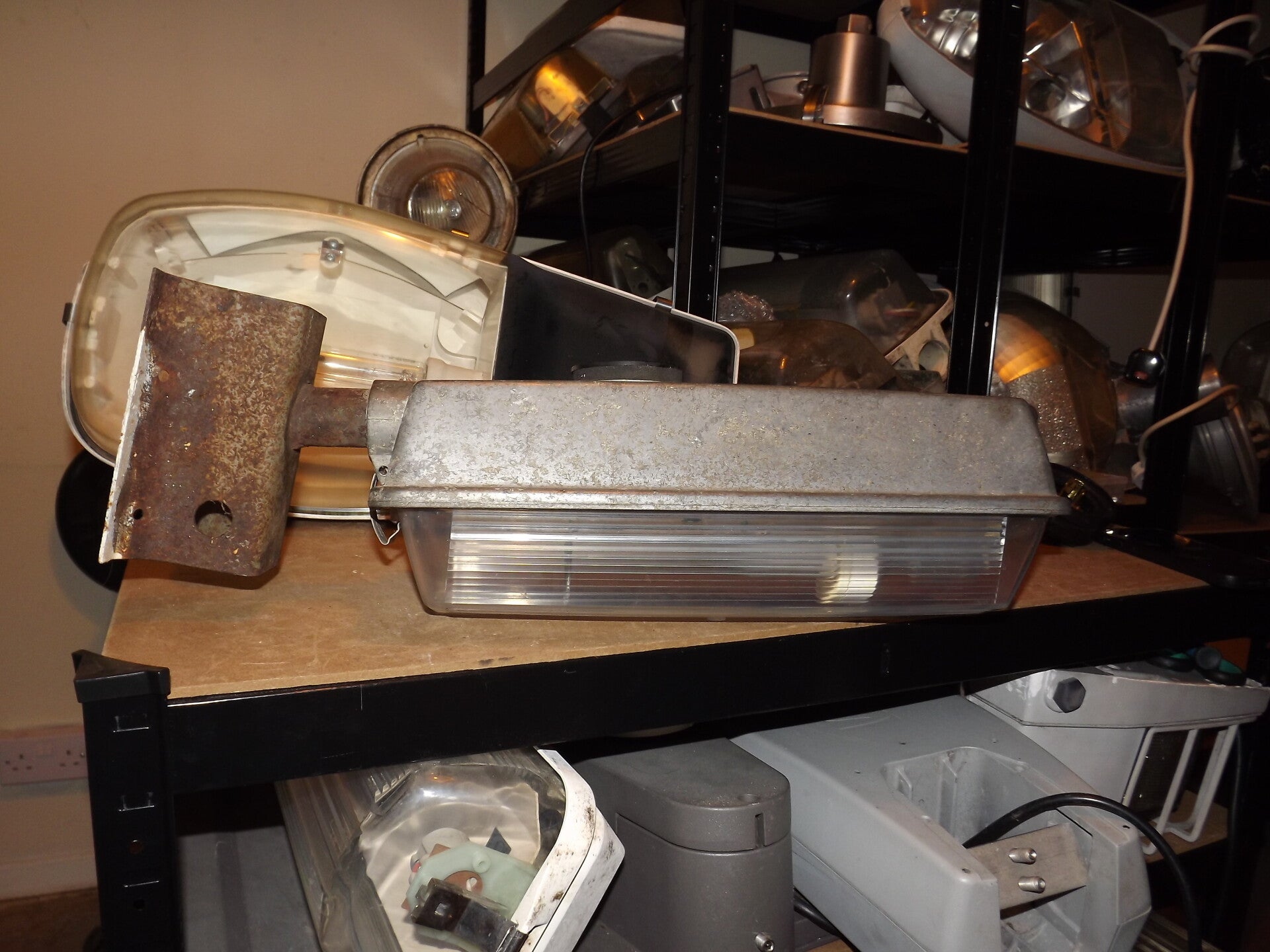

This collection asset perfectly showcases how the GEC/Osram/Siemens/WRTL Z9580/SRL 35 was sold for security lighting. This one was listed on eBay for just £20 - a low price for something like this; It was sold as a barn find. It came complete with a wall bracket, and an interesting modification inside.

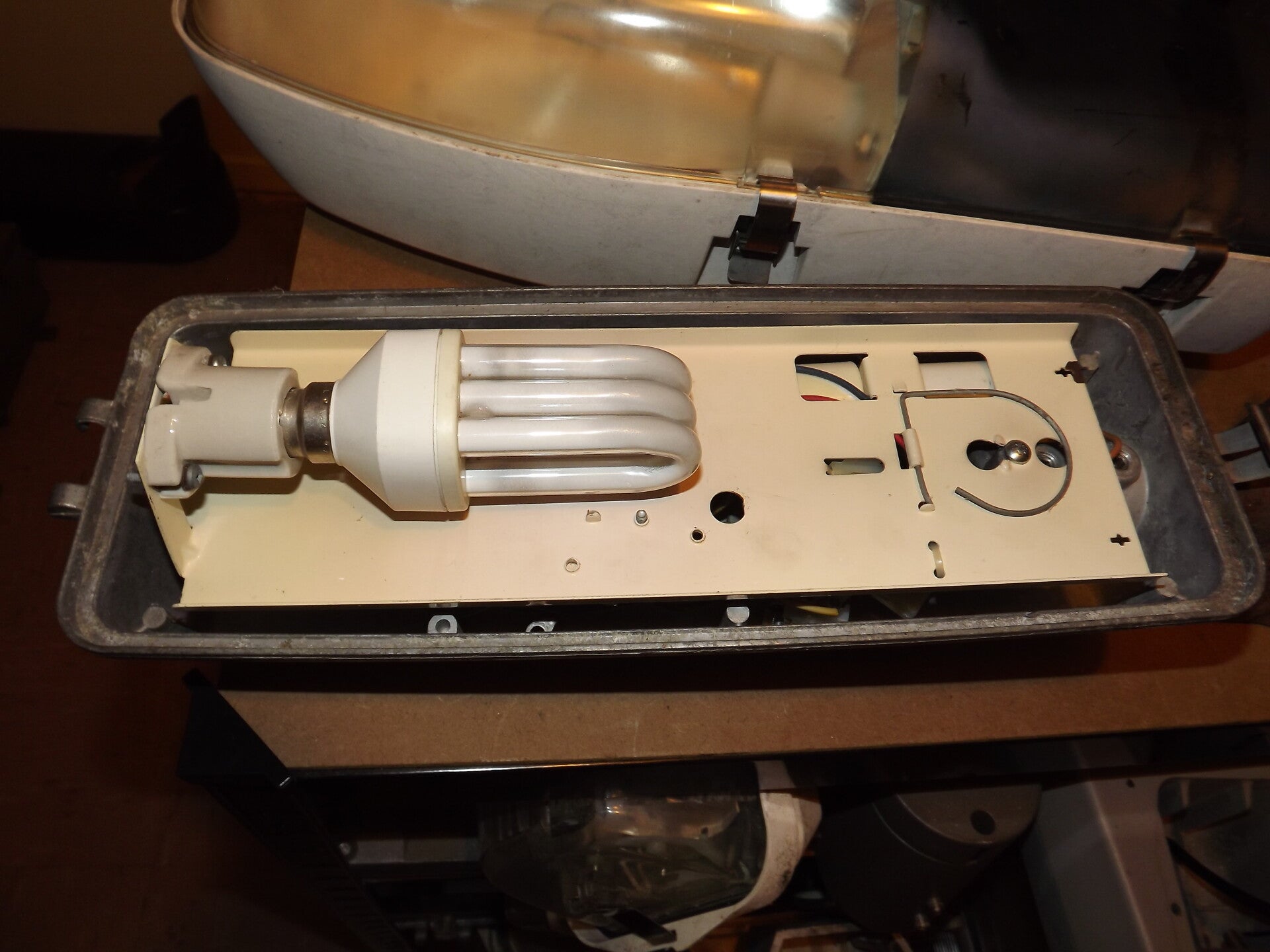

It was fitted with a domestic CFL lamp - I presume after the ignitor failed (and whoever owned it saw the price of SOX lamps nowadays!) an attempt to relight it was made by fitting a CFL lamp. This wouldn't have worked on the SOX gear which was still connected, and so the lantern was removed entirely.

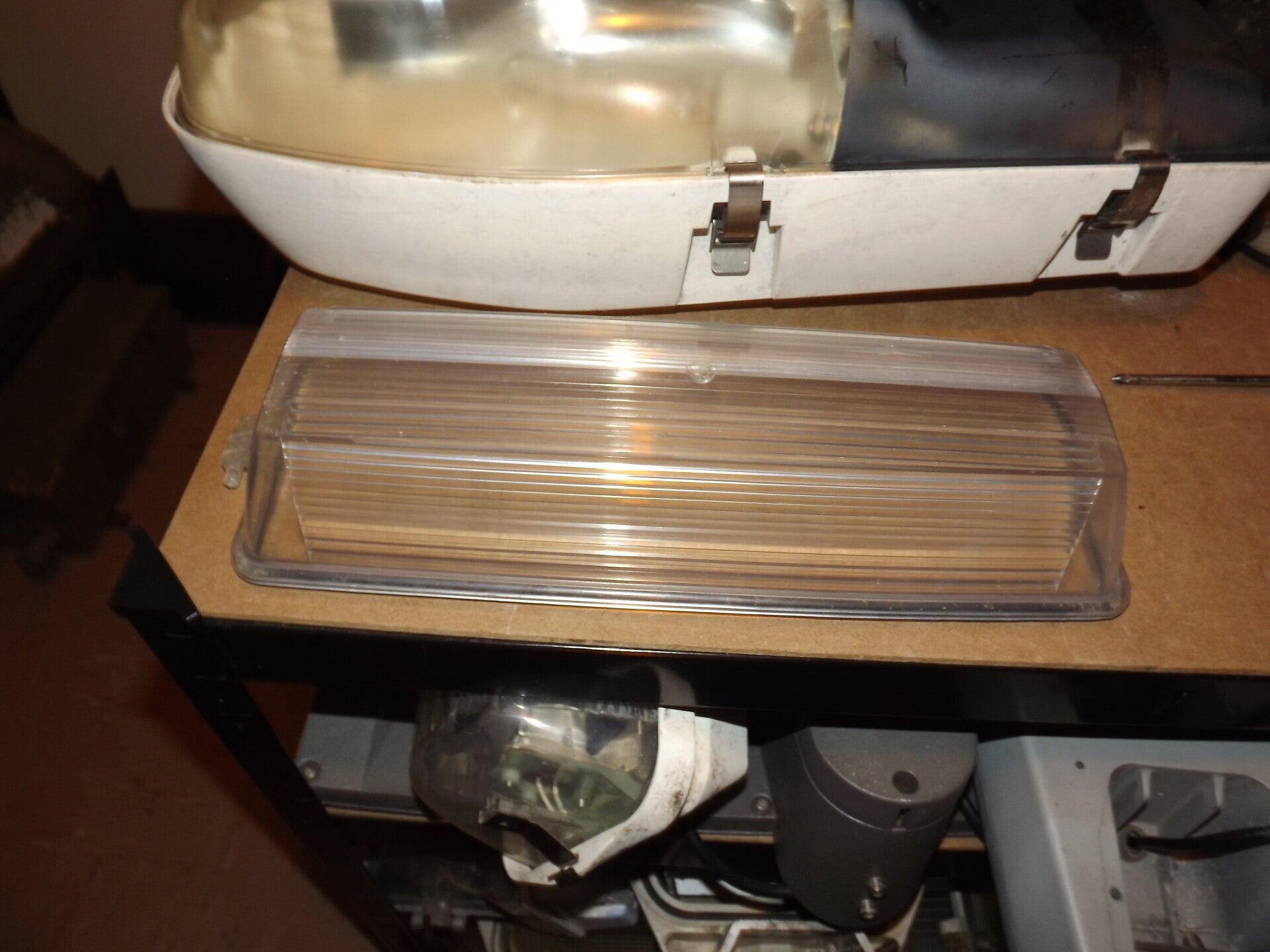

The bowl is incredible on this example, having no cracks!

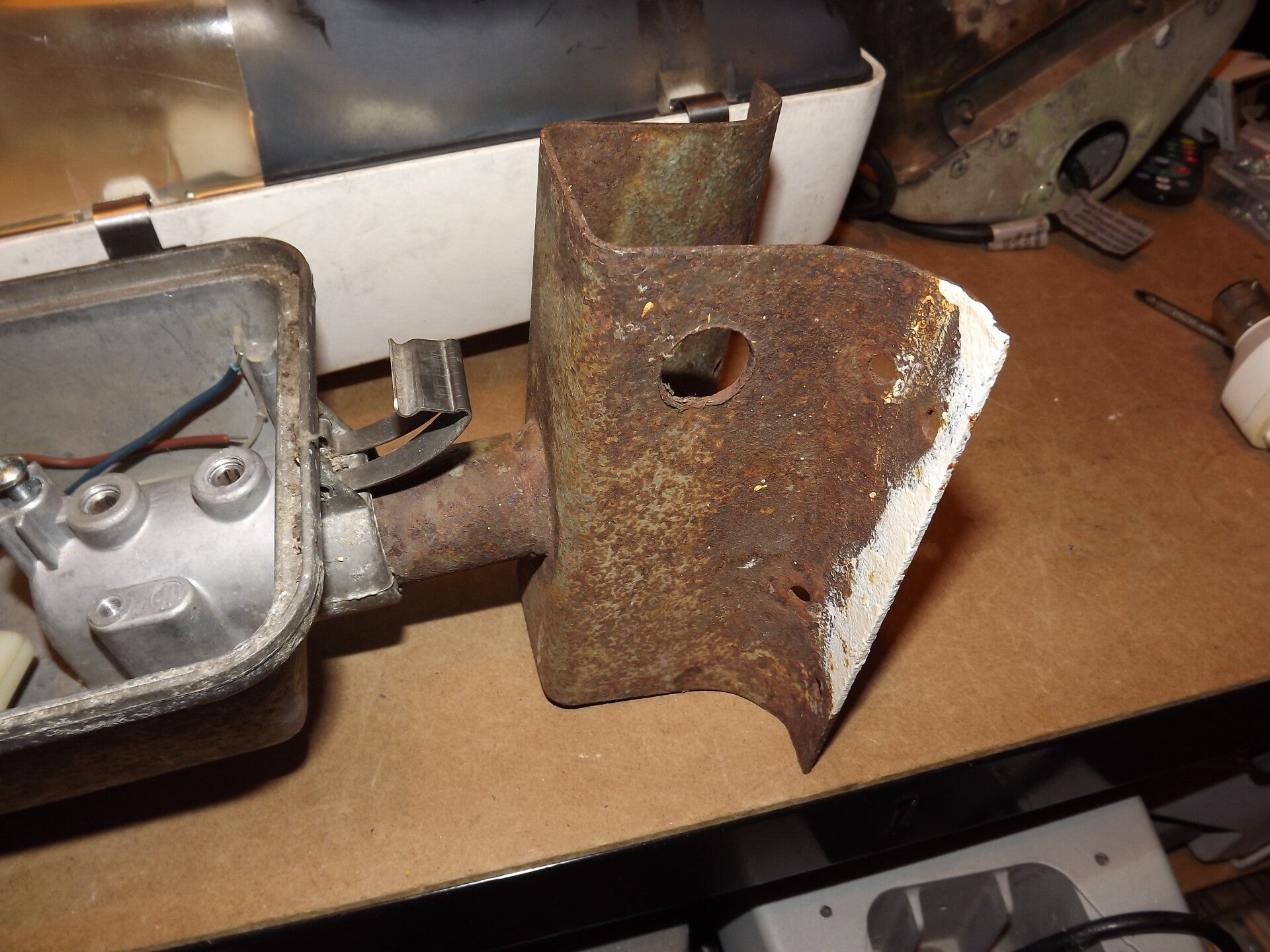

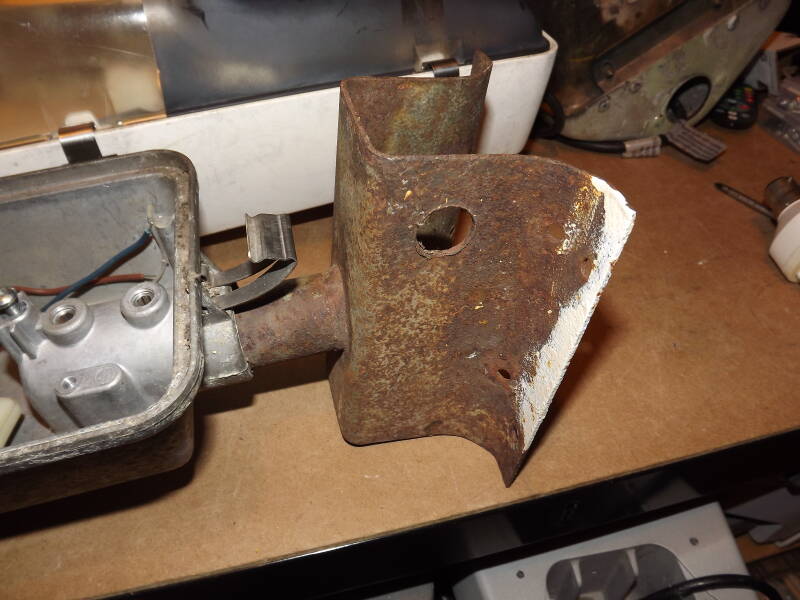

The wall bracket is stuck solid in the spigot, and will need to be persuaded out. The lantern will keep its bracket however.

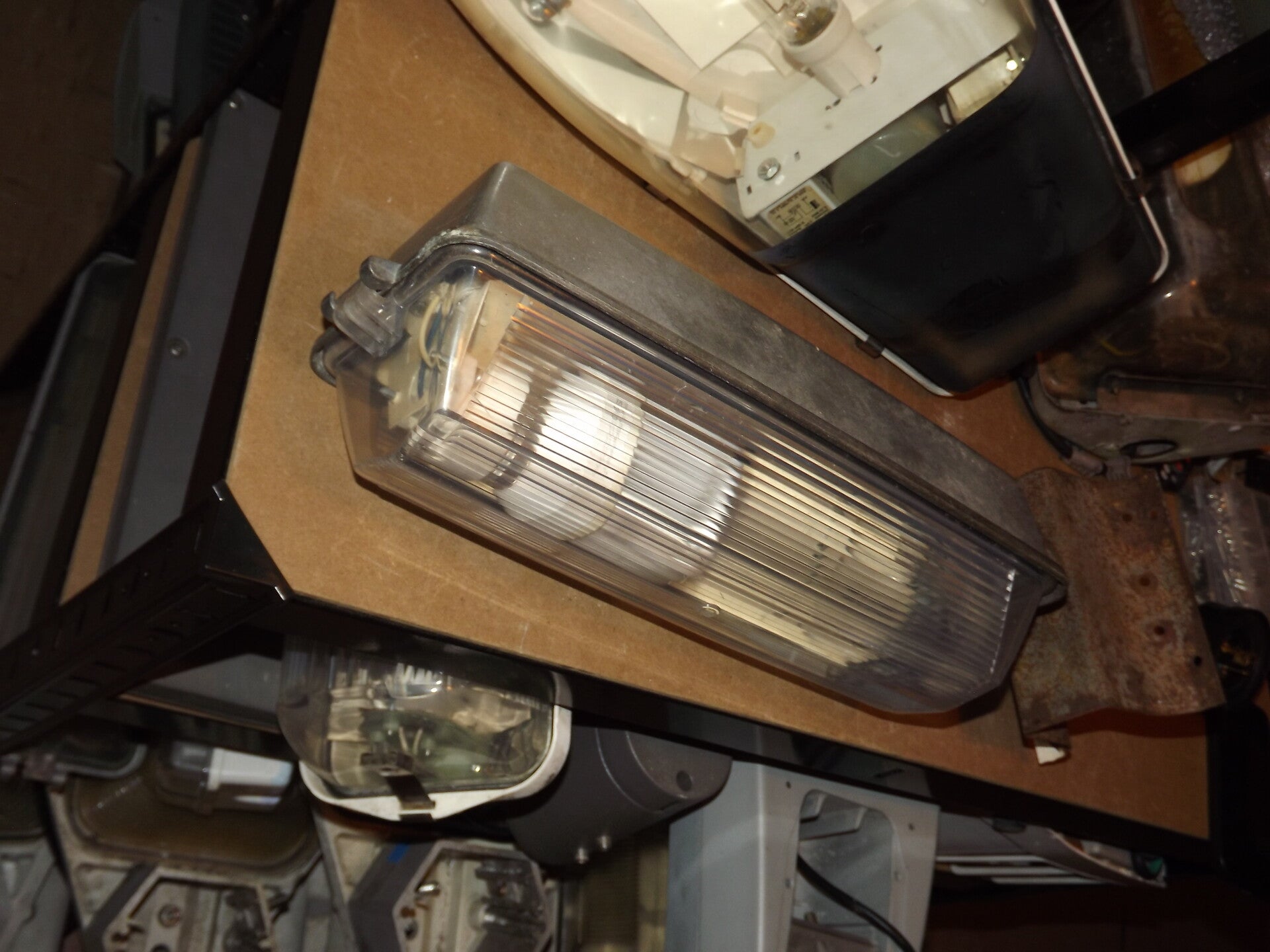

The original lamp smashed during transit, but I fitted one of an identical type/brand from my own collection as a visual demonstration, showcasing how it would have looked with it installed.

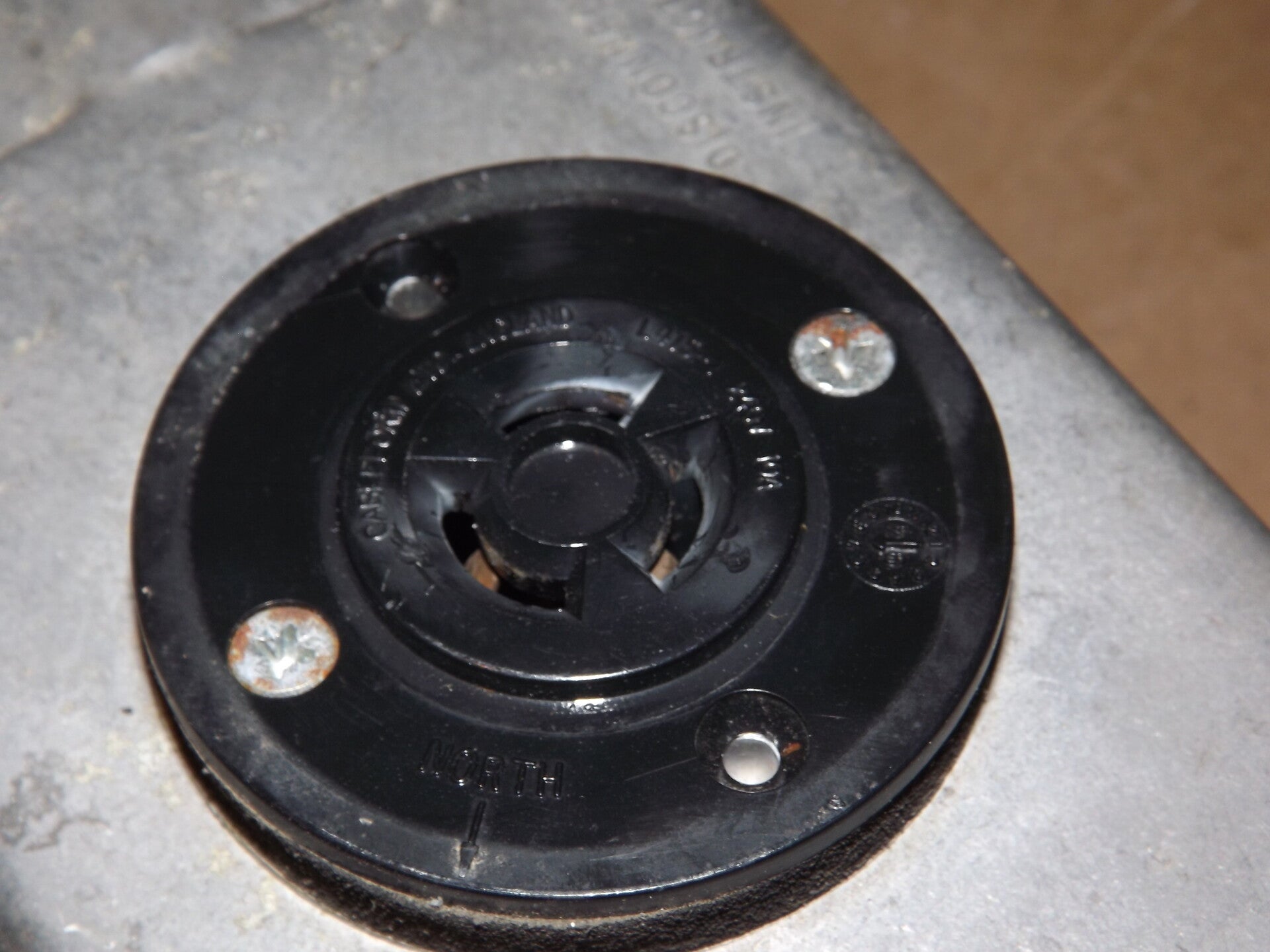

The lantern features a NEMA socket on its canopy, which is ten years older than I am: July 1994.

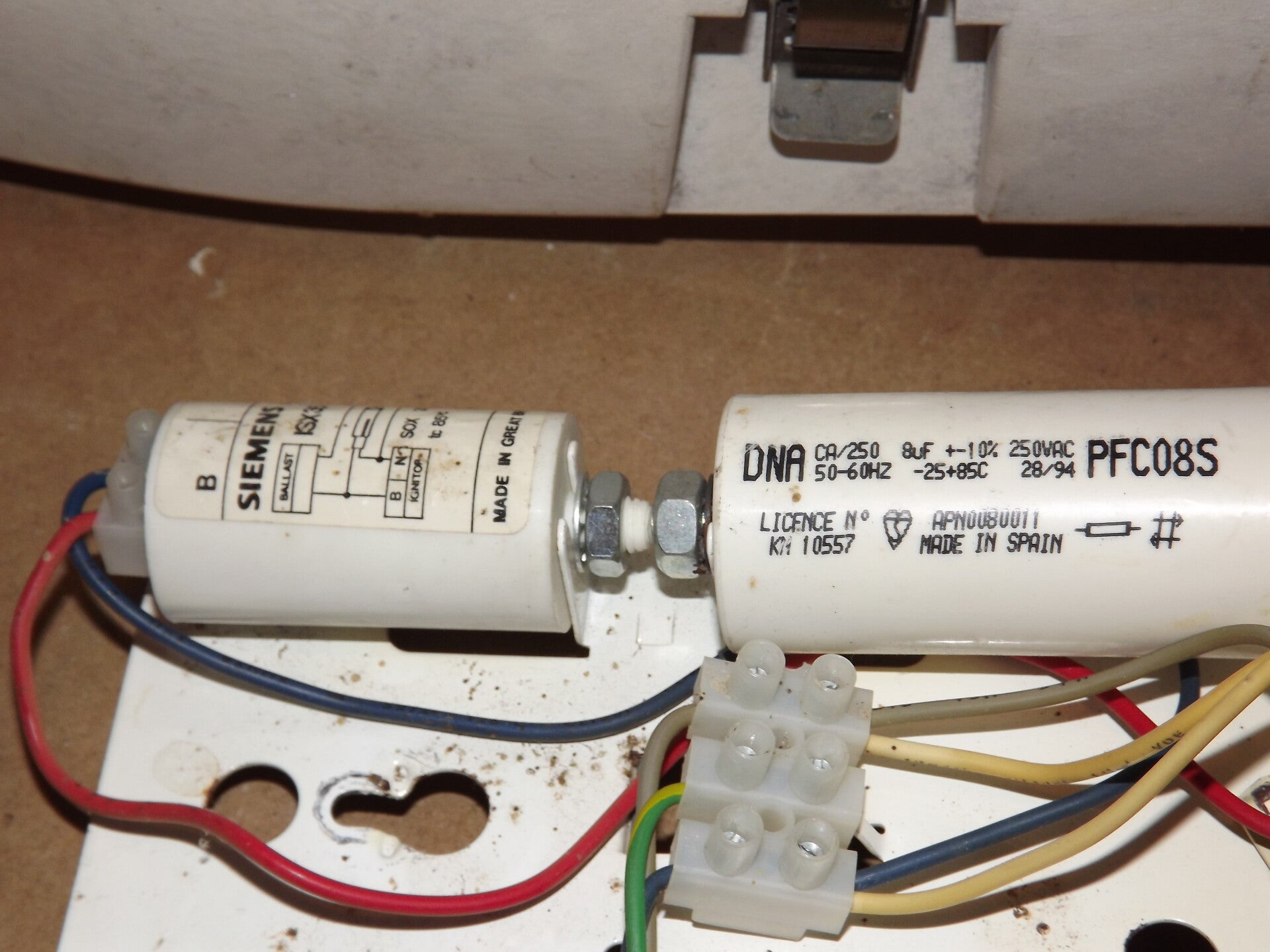

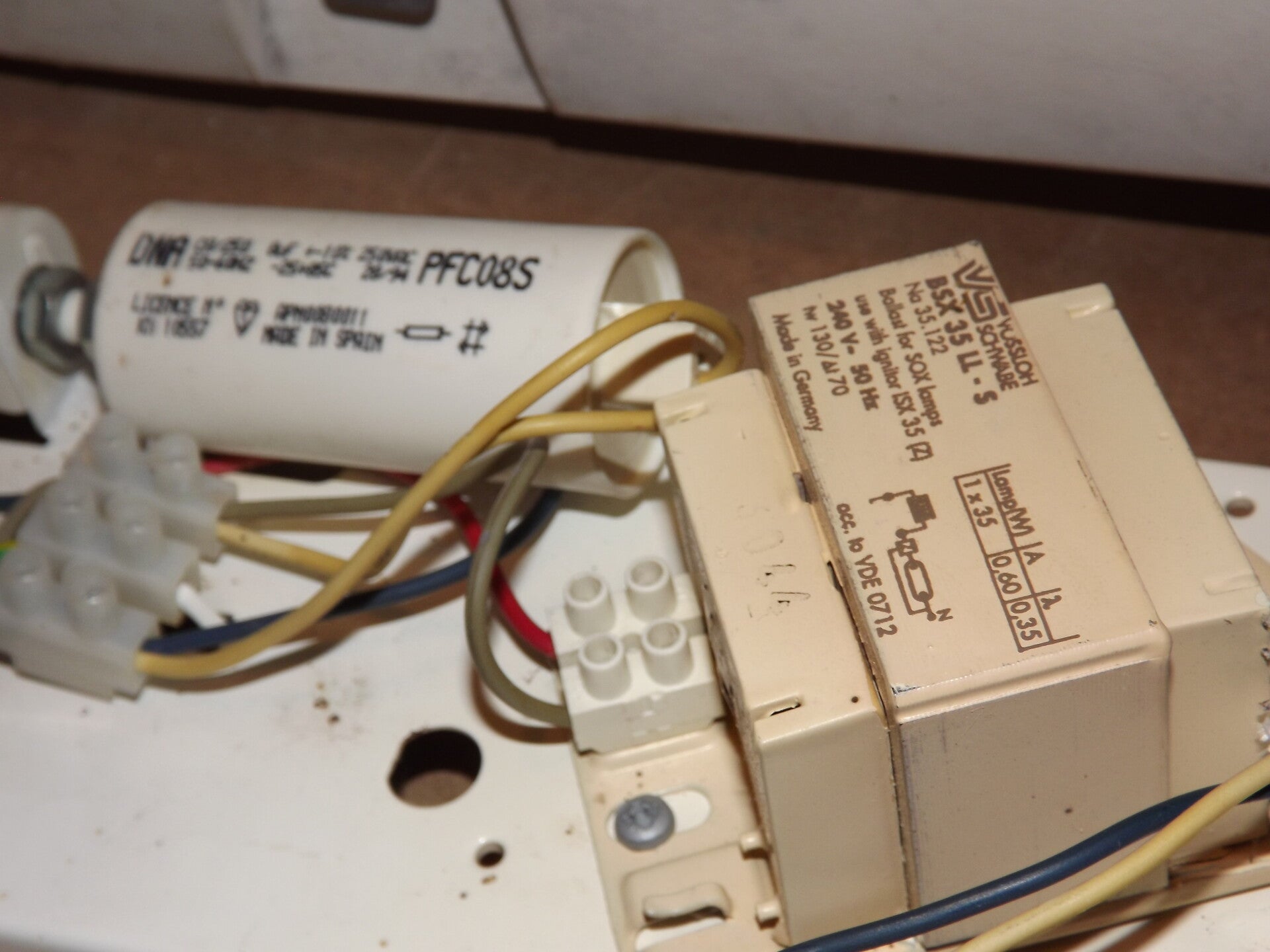

The gear is crammed onto the tray inside - as the Z9580 was the smallest side-entry SOX lantern produced, it's a tight fit!
I will need to find an identical ignitor to get the lantern running again.
