Thorn Gamma 5 Lantern Installations

This lantern originally dates from 1960, where it was sold under the Atlas brand name. They were small, UFO-shaped post-top lanterns for group "B" lighting, that could run: 100W-200W GLS, or 80W-125W MBF/U. The lamp sat vertically (base-down) in the base-casting, with the bowl and canopy having comprised the lantern's body. The bowl was reinforced as there were no internal structures which supported the canopy. These lanterns bore a strong resemblance to the Gamma 4, and were sold and advertised as the much smaller version of that lantern.

Derby

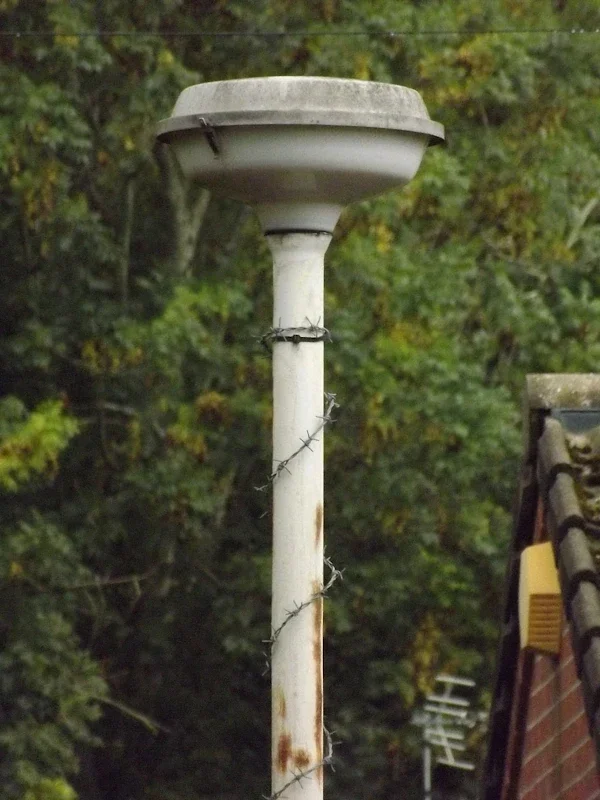

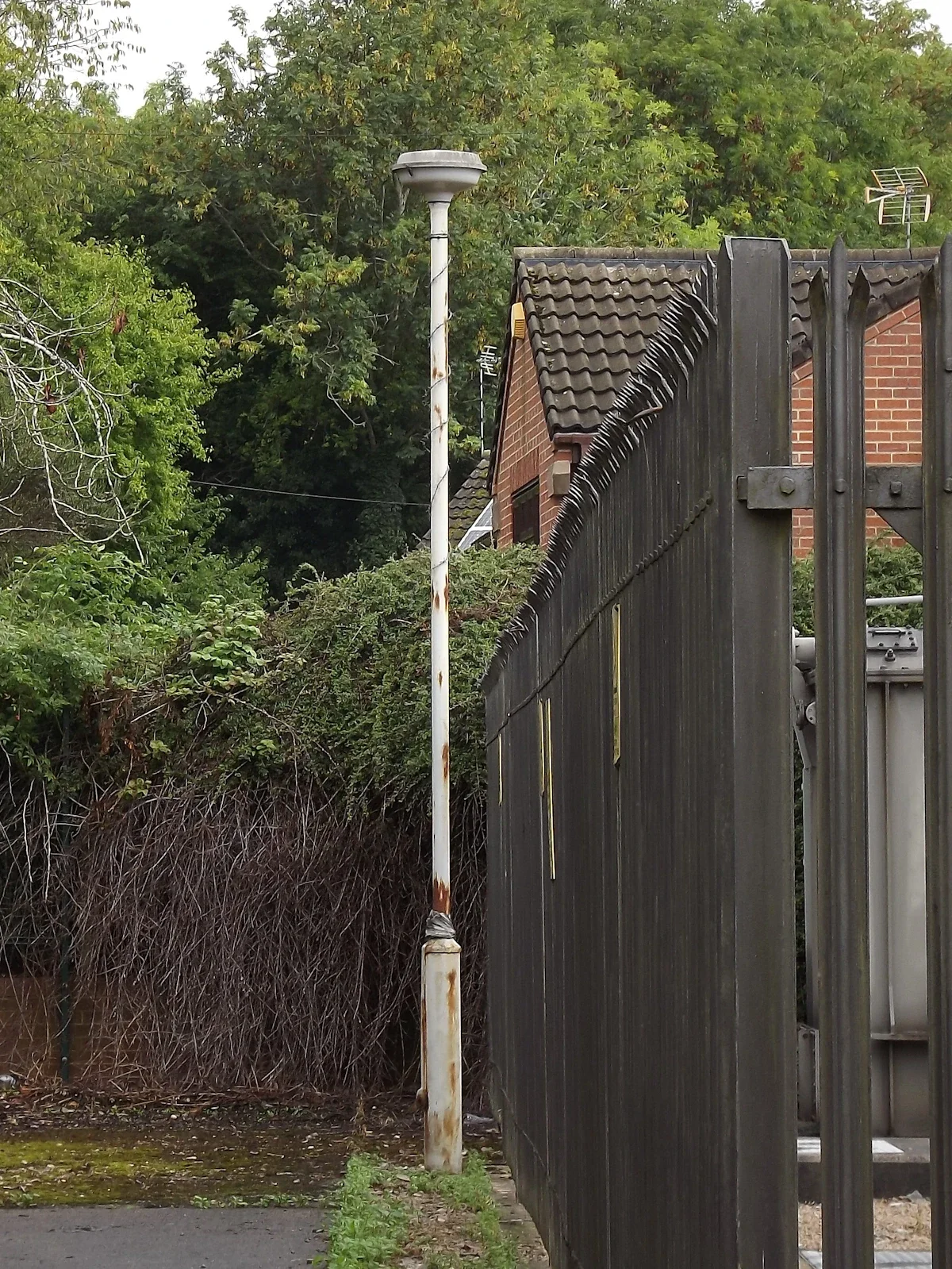

This example of an Atlas Gamma 5 is located in an electricity substation, off Slack Lane, Darley Abbey. It features a spigot built into the column which is an Abacus base-hinge.

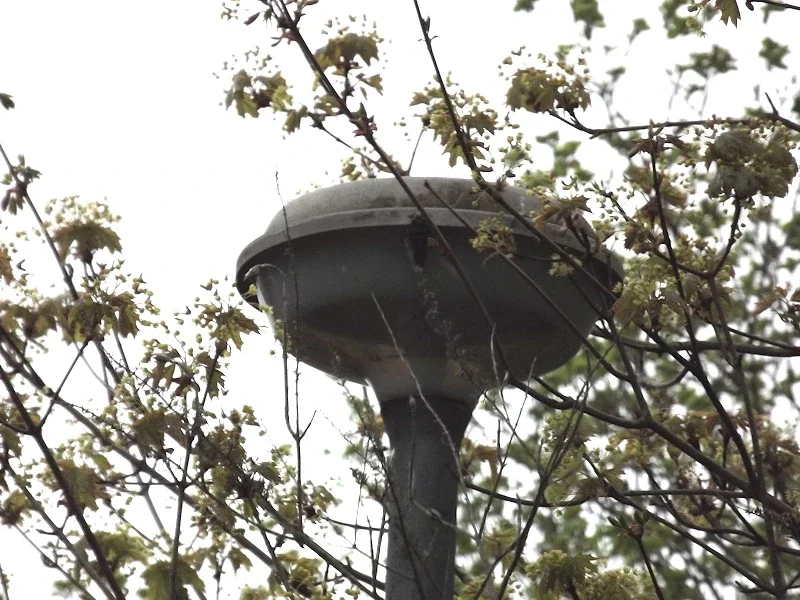

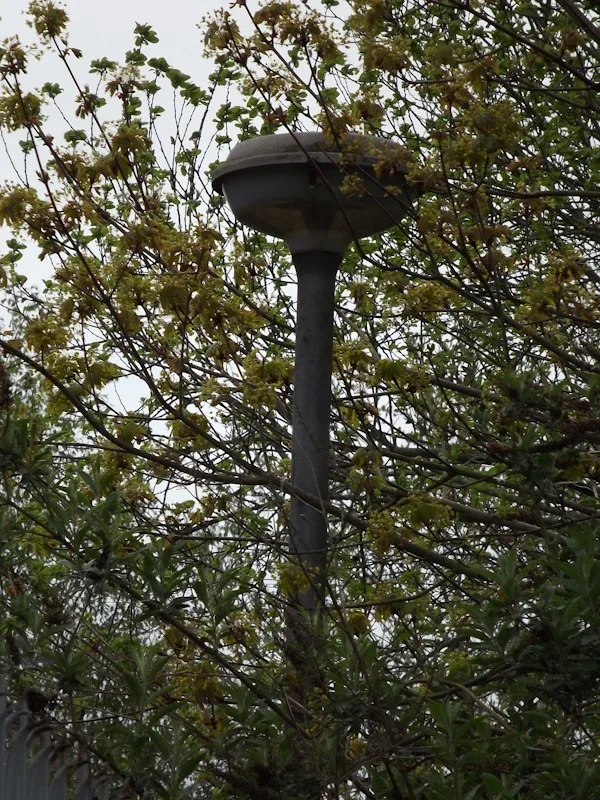

Some very similar installations are present on another substation off Highfield Lane in Chaddesden. These are fitted with 80W MBF/U lamps, though I'm unsure if these sill operate at night.

Sutton Coldfield

A series of 5m columns exist down St. Peter's Close, with all having Gamma 5 lanterns installed on top. These lanterns run domestic LED GLS lamps nowadays.

Inside, the Gamma 5s are all fitted with dome-refractors, which orbit the lamp. The housing association appears to take great care of the lanterns, and their respective columns, as no damage was seen from the public road.

More columns were visible over the hedge row.
